SP EVO 2.0 - 630mm Pipe Butt Fusion Weld Machine Butt Fusion Pipe Welding Machine

SP EVO 2.0 - 630mm Pipe Butt Fusion Weld Machine Butt Fusion Pipe Welding Machine
Click to enlarge

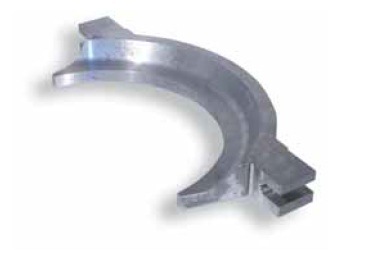

SP 630 Machine Butt Fusion Welding Machine SP 630 Main Frame 630mm Clamps SP 630 Heating Element SP 630 Heating Element Controls SP 630 Pipe End Planer SP 630 Holder (Element & Pipe Planer) SP 630 Hydraulic Control Unit SP630 SP Recorder with the hydraulic unit SP 630 Hydraulic Pipes SP 630 Reducer Clamps SP 630 Stub Flange Clamp Device SP 630mm top bevelled half-jaw - for welding short spigot 90 degree elbows GR180 SP630 Crane SP 630 Transport Cases/Boxes
Product Code: SP630EVO3

Call for details on +44 (0) 1254 660910
  • Ask a question about this product

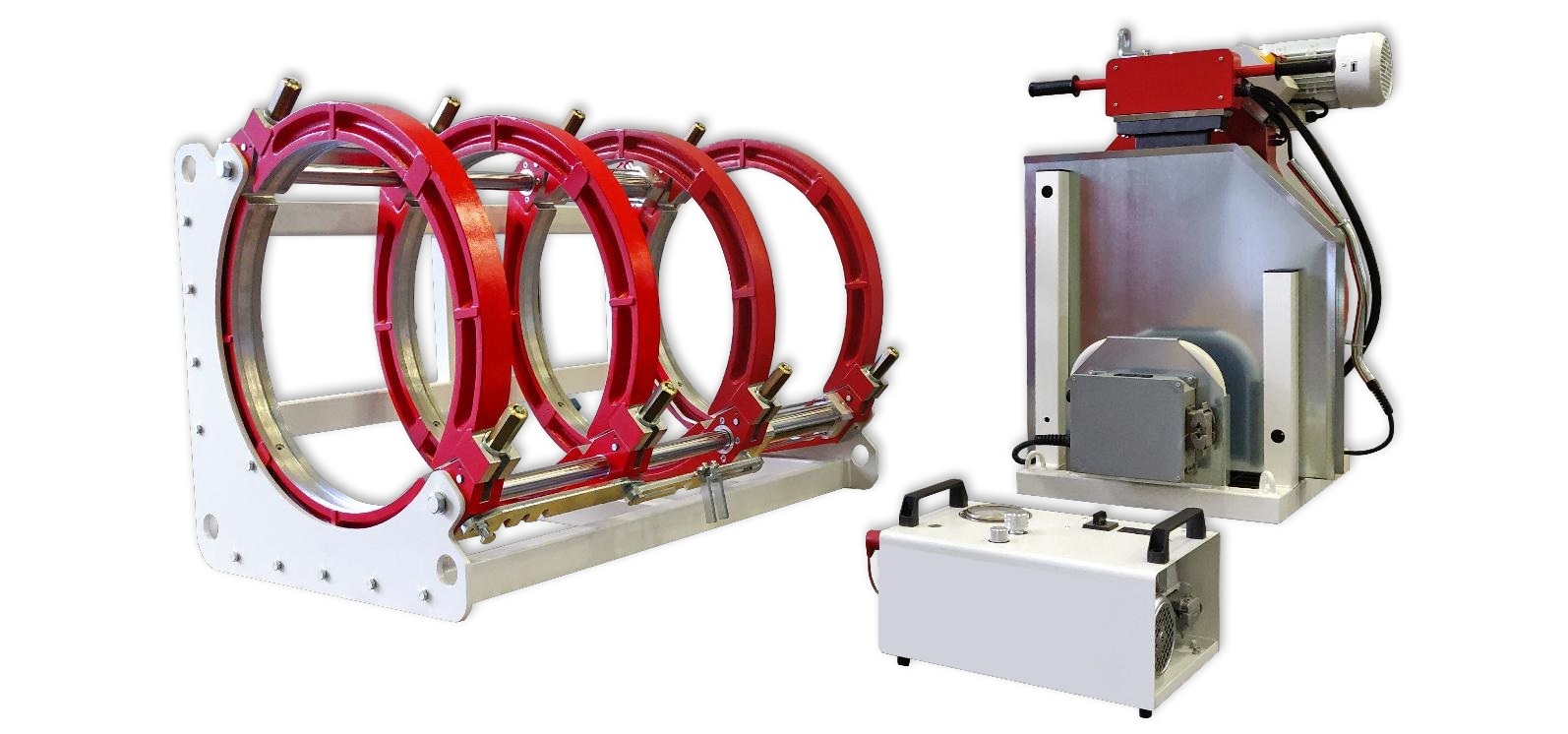

SP630EVO3 (250mm - 630mm) Hydraulically Operated Butt Fusion Welding Machine - Capable of welding pipe to pipe and pipe to fitting butt fusion welded joints in the following materials HDPE & PP.

The complete machine consists of the following:-

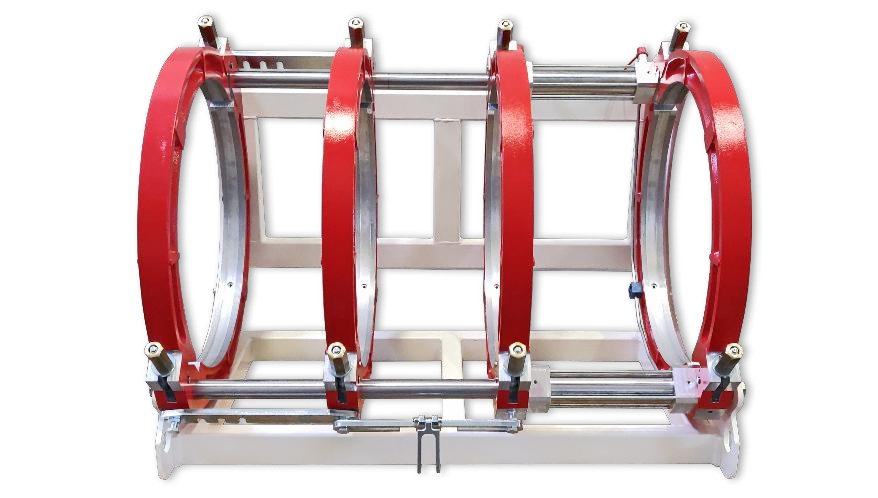

  • Basic machine body (Frame & 4 No. 630mm Main Clamps)

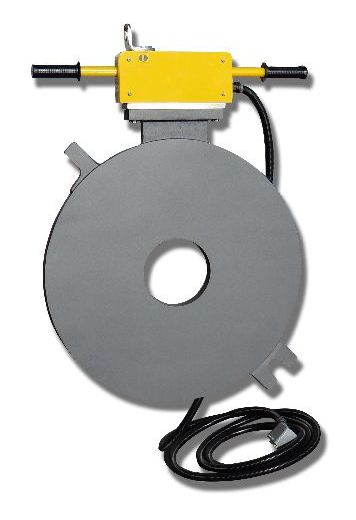

  • PTFE coated Heating Element (400v 3 Phase)

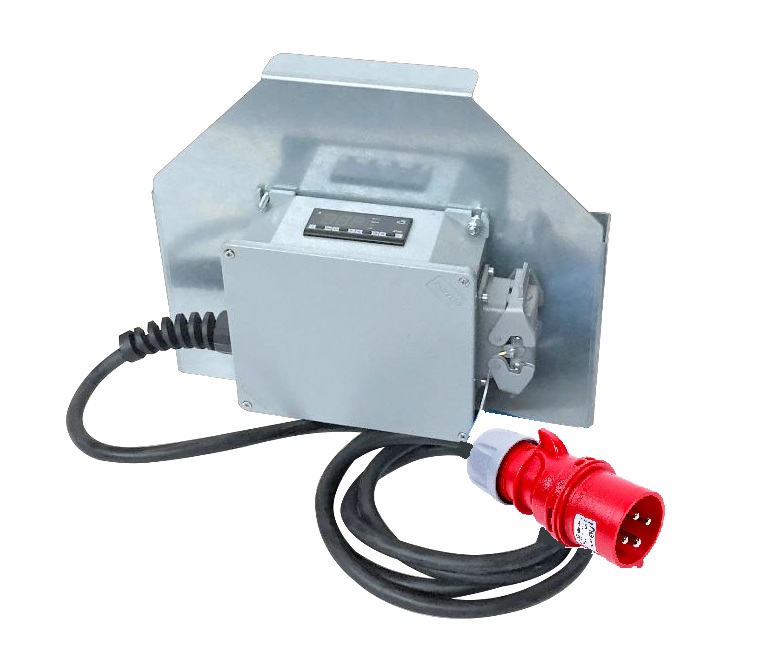

  • Electronic Control Box for the Heating Element (400v 3 Phase)

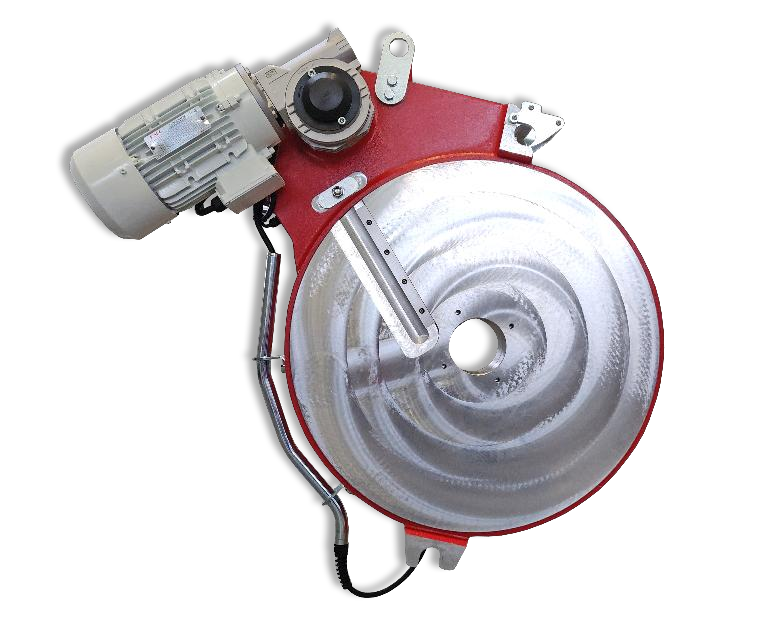

  • Pipe End Planning Tool with double edged blades, reversible (400V 3 Phase)

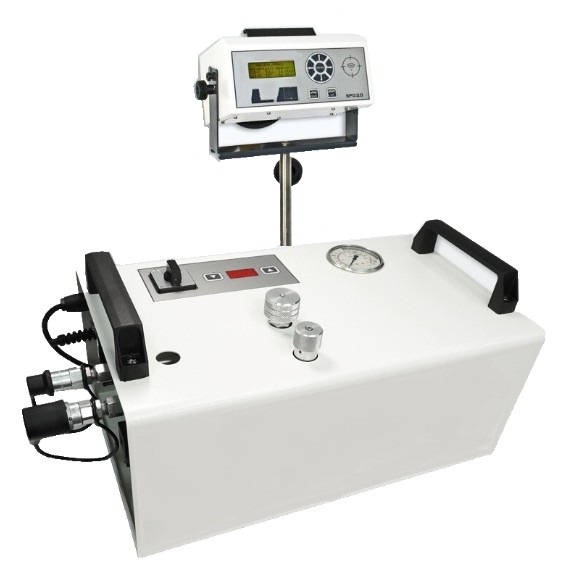

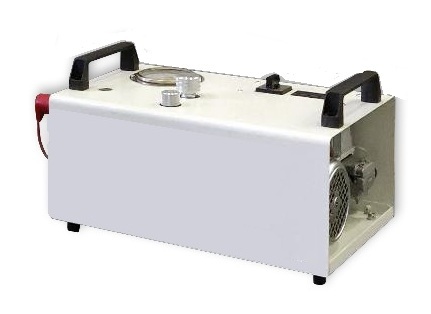

  • Hydraulic Power Unit c/w: Pressure Gauge (230v Single Phase)

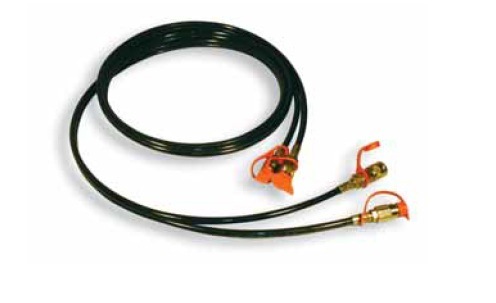

  • Pair of flexible hydraulic pipes with quick release coupling

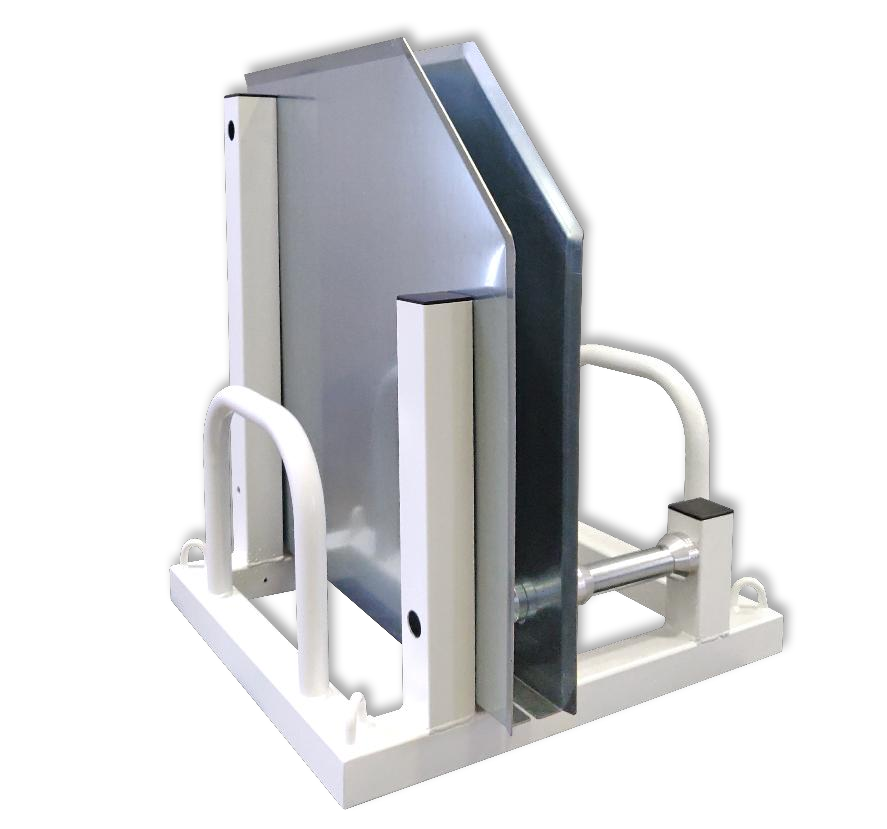

  • Holder (for Heating Element and Pipe End Planning Tool)

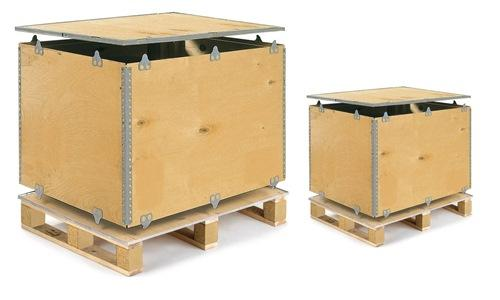

  • Wooden Box: For shipping purposes.

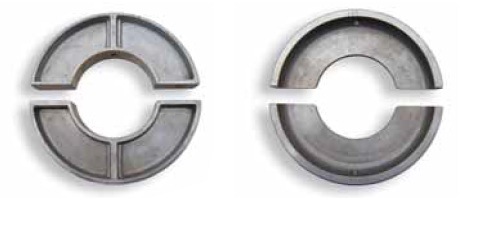

Pipe/Fitting Clamp Reducers (Sold separately to the machine):

  • Sizes: 630/560 mm, 630/500 mm, 500/450 mm, 500/400 mm, 500/355 mm, 500/315mm, 315/280 mm & 315/250 mm.
  • Wooden Box: For storage/transportation of the clamps reducers)



Additional Optional Accessories (Sold separately to the machine):

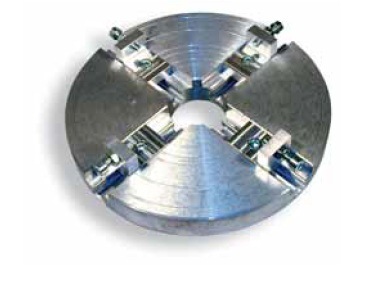

  • Stub Flange Clamp Device

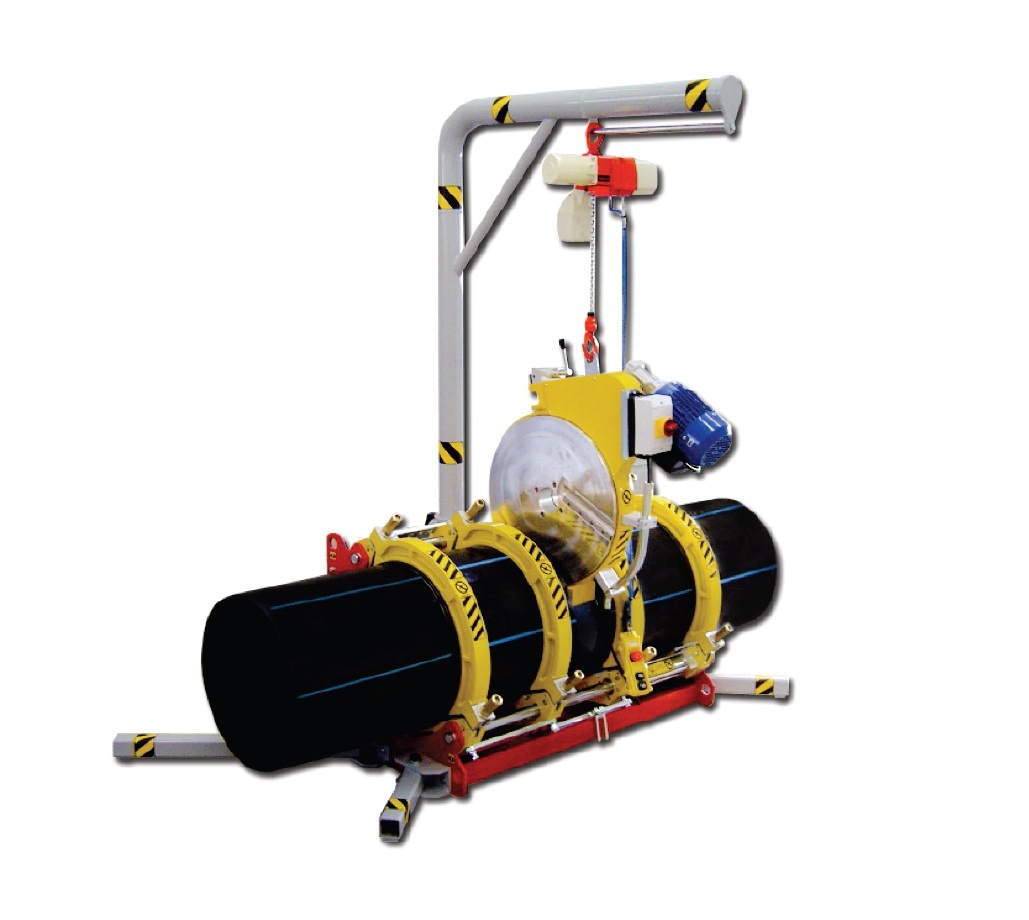

  • GR180 - SP 630: Professional Crane/Hoist for safely handling the PTFE Coated Heating Element & the Pipe End Planning Tool (230v Single Phase)
  • SP Welding recorder - for data retrieval (230v Single Phase)
File Name File Type File Size
SP 630 Butt Fusion Machine Spec Sheet PDF 649.878 Kb
