SP 250 Butt Fusion Welding Machine

SP 250 Butt Fusion Welding Machine
Click to enlarge
SP 250 Machine SP 250 Heating Element Controls SP 250 Heating Element SP 250 Main Frame SP 250 Pipe End Planer SP 250 Holder for Element & Planer SP 250 Hydraulic Controls SP 250 Hydraulic Pipes SP 250 Reducer Clamps SP 250 Stub Flange Clamp Device SP 250mm top bevelled half-jaw - for welding short spigot 90 degree elbows SP 250 Welding recorder - for data retrieval
Product Code: SP 250 110v

Call for details on +44 (0) 1254 660910
  • Ask a question about this product

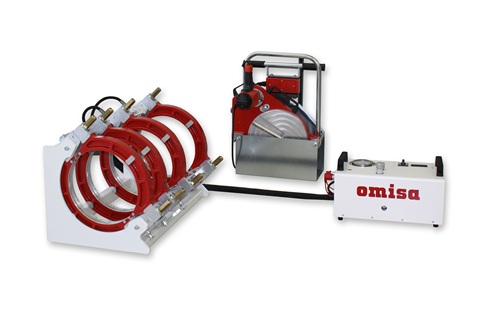

SP 250 (90mm - 250mm) Hydraulically Operated Butt Fusion Welding Machine - Capable of welding pipe to pipe and pipe to fitting butt fusion welded joints in the following materials PP, HDPE, & PVDF.

The complete machine consists of the following:-

  • Basic machine body
  • PTFE coated Heating Element

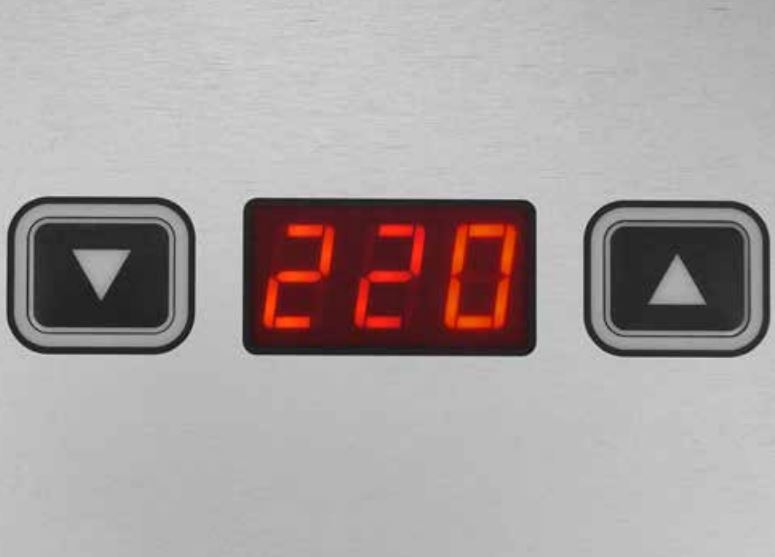

  • Electronic Control Box for the Heating Element

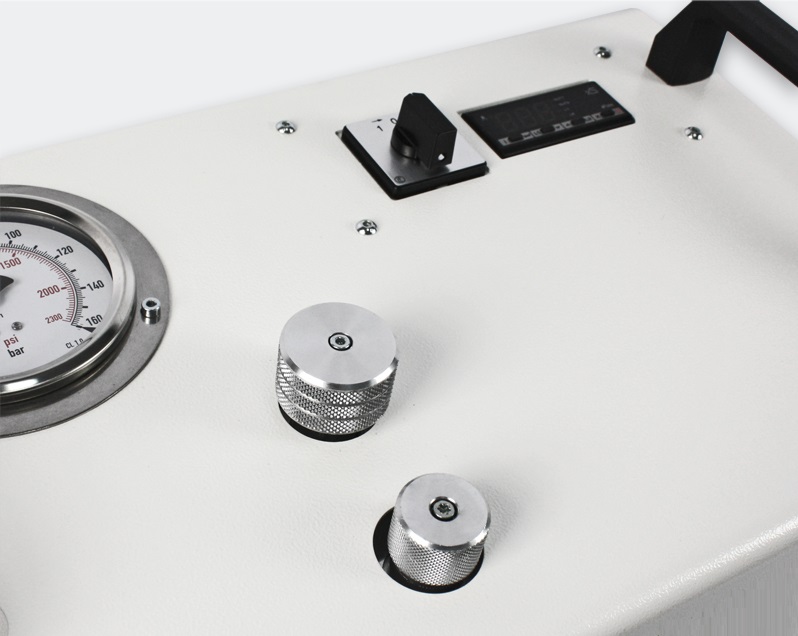

  • Hydraulic Power Unit c/w: Pressure Gauge
  • Pipe End Planning Tool with double edged blades, reversible
  • Pair of flexible hydraulic pipes with quick release coupling
  • Holder (for Heating Element and Pipe End Planning Tool)
  • Full set of pipe/fitting clamp reductions: Sizes 90, 110, 125, 140, 160, 180, 200, 225 & 250mm

Please Note: The machine is available in both 230v or 110v (Please specify which voltage is preferable)

Additional Optional Accessories (Sold separately to the machine):

  • Stub Flange Clamp Device
  • 250mm top bevelled half-jaw - for welding short spigot 90° Elbows
  • Welding recorder - for data retrieval
