SP 315 Pipe Butt Fusion Weld Machine

SP 315 Pipe Butt Fusion Weld Machine
SP 315 Machine SP 315 Main Frame SP 315 Heating Element SP 315 Heating Element Controls SP 315 Pipe End Planer SP 315 Holder for Element & Planer SP 315 Hydraulic Controls SP 315 Hydraulic Pipes SP 315 Reducer Clamps SP 315 Stub Flange Clamp Device SP 315mm top bevelled half-jaw - for welding short spigot 90 degree elbows SP 315 Welding recorder - for data retrieval
Product Code: SP 315 110v
Weight 250.00 kgs

Call for details on +44 (0) 1254 660910

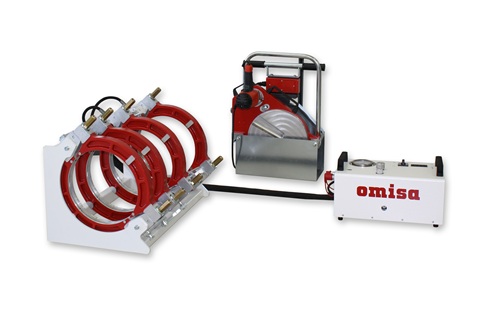

SP 315 (90mm - 315mm) Hydraulically Operated Butt Fusion Welding Machine - Capable of welding pipe to pipe and pipe to fitting butt fusion welded joints in the following materials PP, PE, & PVDF.

The complete machine consists of the following:-

  • Basic machine body
  • PTFE coated Heating Element
  • Electronic Control Box for the Heating Element
  • Hydraulic Power Unit c/w: Pressure Gauge
  • Pipe End Planning Tool with double edged blades, reversible
  • Pair of flexible hydraulic pipes with quick release coupling
  • Holder (for Heating Element and Pipe End Planning Tool)

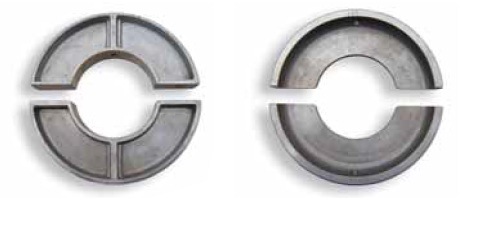

  • Full set of pipe/fitting clamp reductions: Sizes 90, 110, 125, 140, 160, 180, 200, 225, 250 & 280mm

Please Note: The machine is available in both 230v or 110v (Please specify which voltage is preferable)

Additional Optional Accessories (Sold separately to the machine):

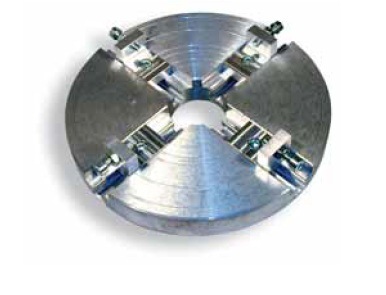

  • Stub Flange Clamp Device

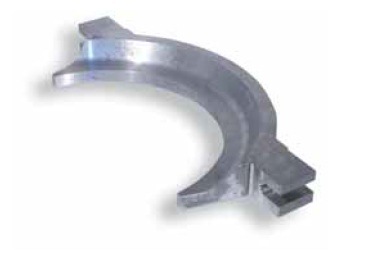

  • 315mm top bevelled half-jaw - for welding short spigot 90° Elbows

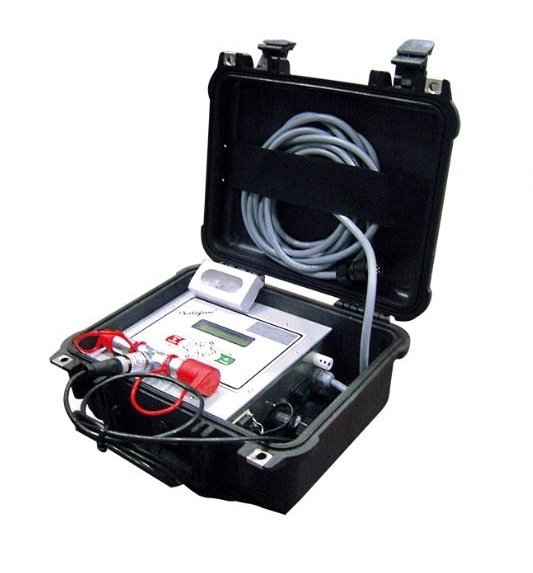

  • Welding recorder - for data retrieval
