Munsch Robotics Extruder Welder Solutions

Munsch Robotics Extruder Welder Solutions
Click to enlarge
Munsch Robotics Extruder Welder Solutions Munsch Robotic Extruder Welder
Product Code: Rob Extruder
Weight 6.00 kgs

Call for details on +44 (0) 1254 660910
  • Ask a question about this product

Munsch Robotics Extruder Welder Solutions

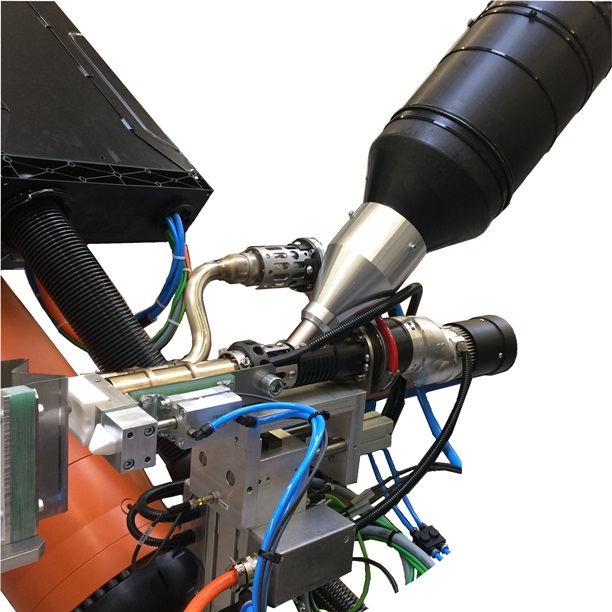

Munsch offer a purpose built extruder welders for use on robotic arms. The extruders have brushless drives and an external air heater meaning that you can work fast and almost maintenance free.

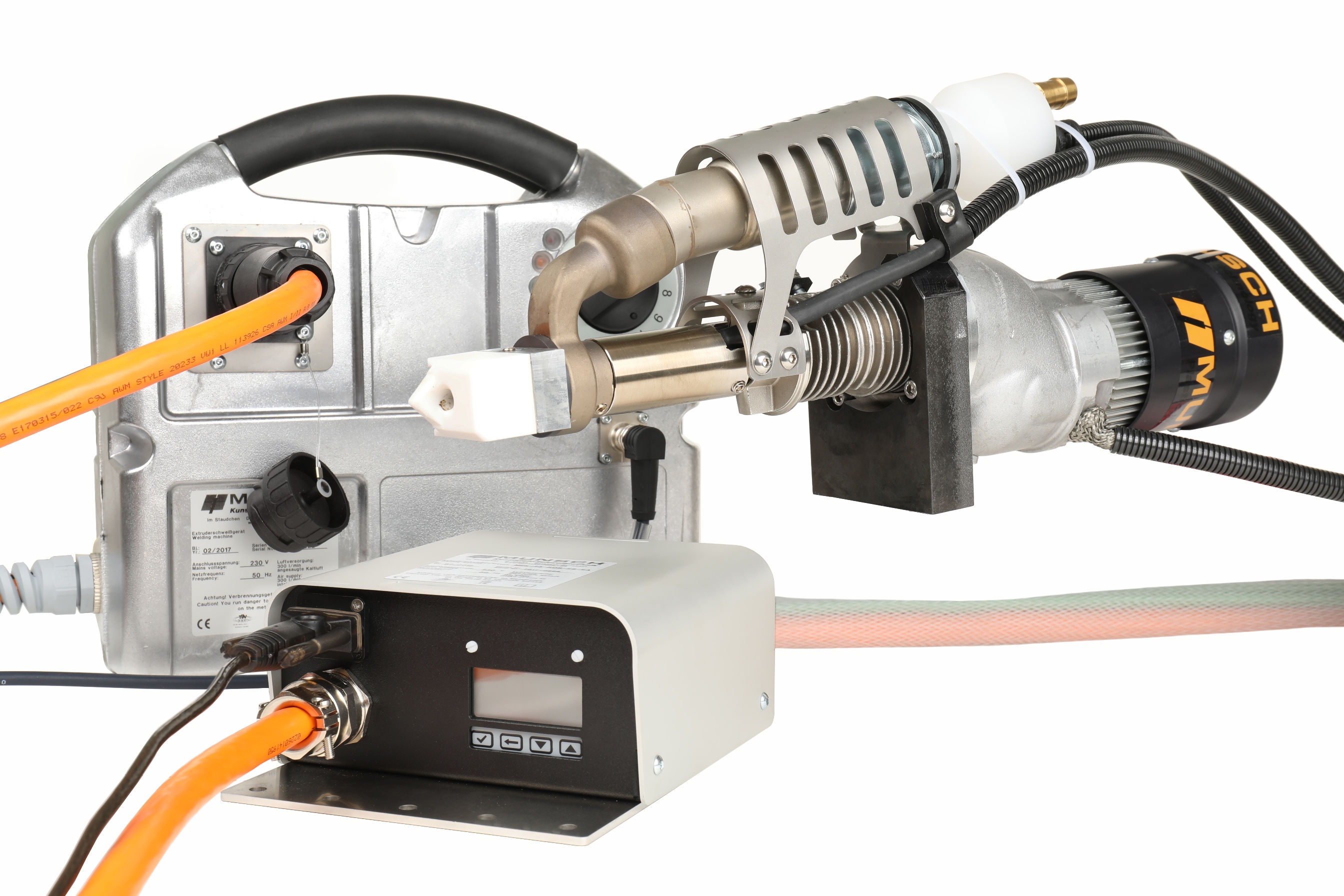

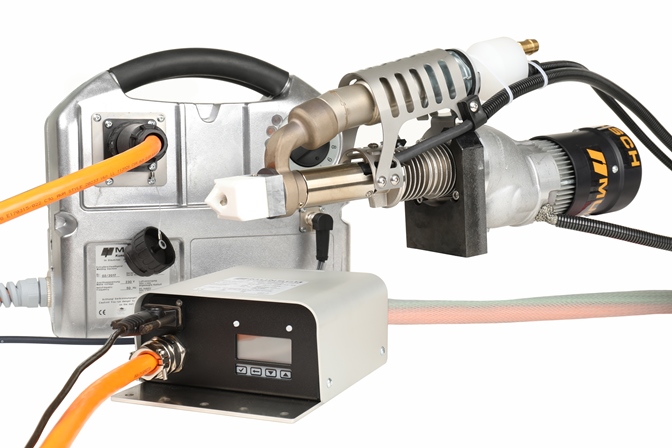

The extruder would need to be used in conjunction with a Power-Box. The Power-Box contains a frequency converter with EMV-filter and the complete electric for Range of Munsch Extruders with brushless drives. The drive speed of the extruder is adjusted by this Power-Box.

The extruder welders are available in both welding rod or granulate feed.


Key Features:-
  • Brushless air heater
  • Brushless drive
  • Comfortable menu guide with automatic temperature setting
  • Two materials preset, further spaces for customer`s own programming
  • Display / Menu
  • Temperatures can be set digitally
  • Includes port for checking, adjusting both set and pre-set values and more
Technical Data:-
  • Maximum welding rate: 7.3 kg/h*
  • Welding material: PP & PE
  • Material feed options: Granulate or Welding Rod
  • Application range: Thicknesses 10 – 50 mm
  • Weight: Maximum 16.3 Kilos
  • Electronic speed control: Yes
  • Extruder heating: 650 / 800 W
  • Powerbox required: Yes
  • Preheating: 2300 W**

* On Granulate Extruders depending on type and size of the granulate

** Extruder also available without preheating


Please call for details...
