Munsch Mini-LDPE – Extruder Welder

Winner of the ISB Innovations Award

The most compact lightweight and advanced extrusion welder available.

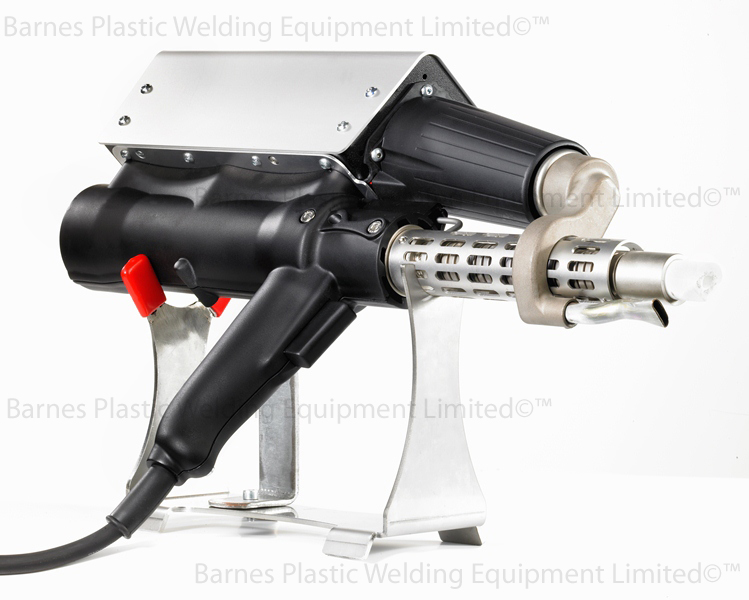

Introducing the Munsch Mini-LDPE Plastic Extrusion Welder used for plastic repair and fabrication of plastic tanks & containers.

The Munsch Mini-LDPE is a special version capable of welding not only standard welding plastic materials such as: HDPE, MDPE, PP, PVDF & PVC with standard 3mm Round Plastic Welding Rods.

It is also capable of welding LDPE by using 4mm Round LDPE Welding Rods.

The Munsch Mini-LDPE can also be used for the welding of commercial vehicle bodies, portable buildings and logistical containers made from thermoplastic sandwich panels. These panels consist of polypropylene-honeycomb and fibre-glass reinforced polypropylene-face sheets.

Extruder welder features:

• Integral air supply
• Pre-set dual digital temperature controls
• Safety cut out - prevents cold start of the extruder
• 12 months warranty
• CE approved

Extruder comes c/w:-

• 8mm Fillet Weld Shoe
• Set of Air Nozzles
• Tool & Maintenance Kit (Spanners, hexagonal keys etc...)
• Hot Air Hood (to keep heat into welding shoe)

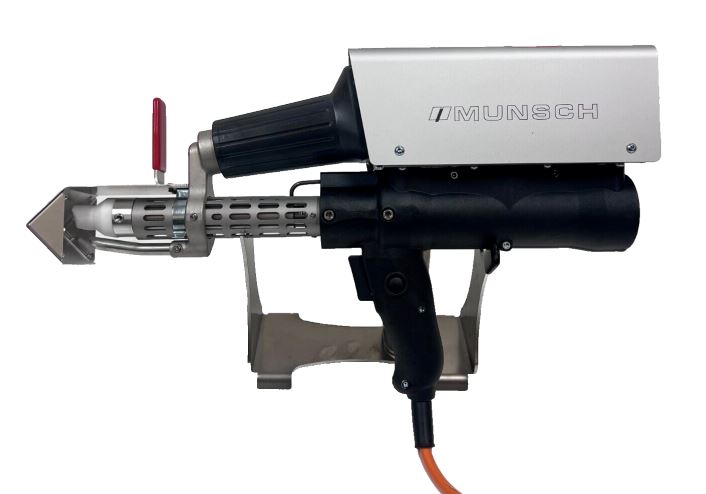

• Extruder Stand
• Operating Manual

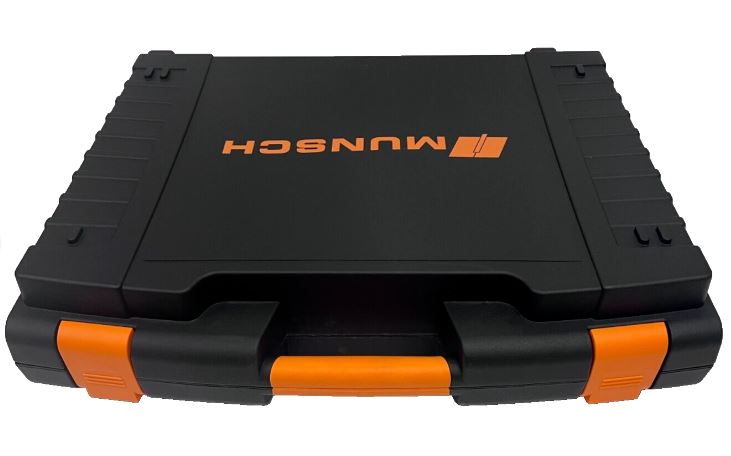

• Steel Carrying/Storage Case

Extrusion welder technical specification:

• 230v
• Extrusion welding output:  0.6kg per hour
• Plastic welding rod:  3mm in HDPE/MDPE/PP/PVC
• Plastic welding rod:  4mm in LDPE Only
• Extrusion welding range:  2mm - 10 mm
• Weight:  3.4 kgs
• Length:  45 cm
• Heating capacity:  2300w

The Mini Extrusion Welder has revolutionised the extruder welder market.

Ideal for welding plastics in those hard to reach places - please call for more information or to request a demo of the Munsch Mini Extruder Welder.
