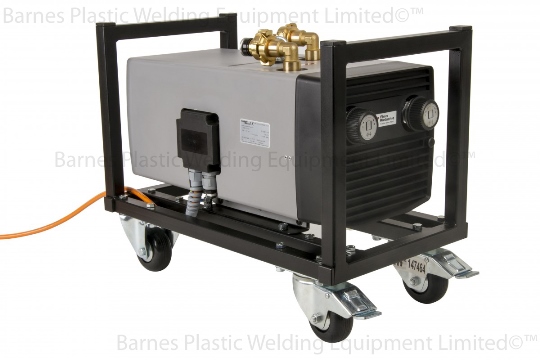

Munsch Compressor/Vacuum Pump - Dry Running

The Munsch Dry Running Rotary Vane Vacuum Pump comes complete with a integral suction air filter. Sound cover reduces the noise level, enhances cooling and protects the operator from touching hot surfaces. Flexible connections possible, low pulsation, easy to operate, maintain and install. Capacities ranging from 17.0 to 50.4 m³/hr (10.0 to 29.6 cfm), ultimate vacuum 150 mbar (abs.). They are both efficianet and reliable.

Specifications:-

• Voltage: 230v
• Motor: Single Phase 50 Hz
• Full Load Amperage: 5.6 Amp
• Volume flow: Up to
  26m³ Airflow / h
• Pressure: Up to 0.6 bar Pressure / Vacuum
• Ultimate Vacuum: 112.5 Torr - 25.5 in. HgV
• Suction Capacity: 15.9 cfm
• Speed: 1450 rpm
• Wheeled baseframe (for easy mobility)

• Noise level reduced by 3 dB(A)
• Easy access to change filter
• Long vane life
• Lower temperature due to the new cooling system
• Low energy consumption
• Low maintenance Low life cycle costs

Please Note: This unit should be used with all the Munsch MEK Extruder Welders as they require a seperate air supply. They can also be used with the Munsch Vacuum Boxes & Vacuum Bells.
