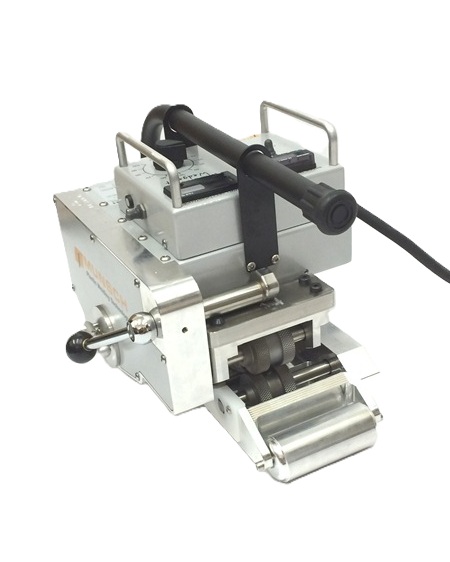

Wedge IT Plus - Heavy Duty Wedge Welder

The industry work horse.

The Wedge IT Plus is the best in high end wedge welding and it keeps getting better. It now features an Easy-Out-Wedge that makes changing out cartridge heaters so simple.

Key Features:-

• Drop out bottom contour rollers make for easy cleaning and access

• The controls include temperature and speed display as well as built in alarms to keep your weld on track

• The Wedge IT Plus sits on a solid one piece frame. There is no hinging and minimal frame flex. And as we mentioned before, it has the patented Easy-Out-Wedge maening the heat cartridges are easily removed.

Specifications:-
Material Types

• PP
• HDPE 0.5 to 3mm   (20 to 120+ mil),
• LDPE 0.5 to 3mm   (20 to 120+ mil),
• PVC , Hypalon, XR-5, PVC and other geomembranes
• Geotextile

Performance

• Travel Speed: 0 to 6 Metres per min., adjustable. (0 to 20 feet per min., adjustable)
• Material size: 0.5 to 3mm or 20 to 120mil
• Temp: Up to 450°C or 850°F, adjustable.
• Ambient Conditions Extreme: 9 to 55° C, (-20 to 120 °F)

Wedge Sizes

• 45mm solid or 45mm split with 15mm Air test channel 15mm x 15mm x 15mm (to European Standard)

Weight

• Unit: 24kg (53lb)
• Shipped: 33kg (72lb)

Power

• 110v or 240v(Switchable)

Includes

• Heavy Duty Transport/Storage Case (On a Troller - Helps Aid Easy Mobility)
• Adjustment tools

The Wedge It Wedge Welder can be used for welding the following:-

• Gas/contamination barriers
• Landfill cells and caps
• Lining of underground water attenuation tanks
• Waste water lagoons
• Large irrigatation lagoons
• Balancing ponds
