Wedge It Multi - Wedge Welder

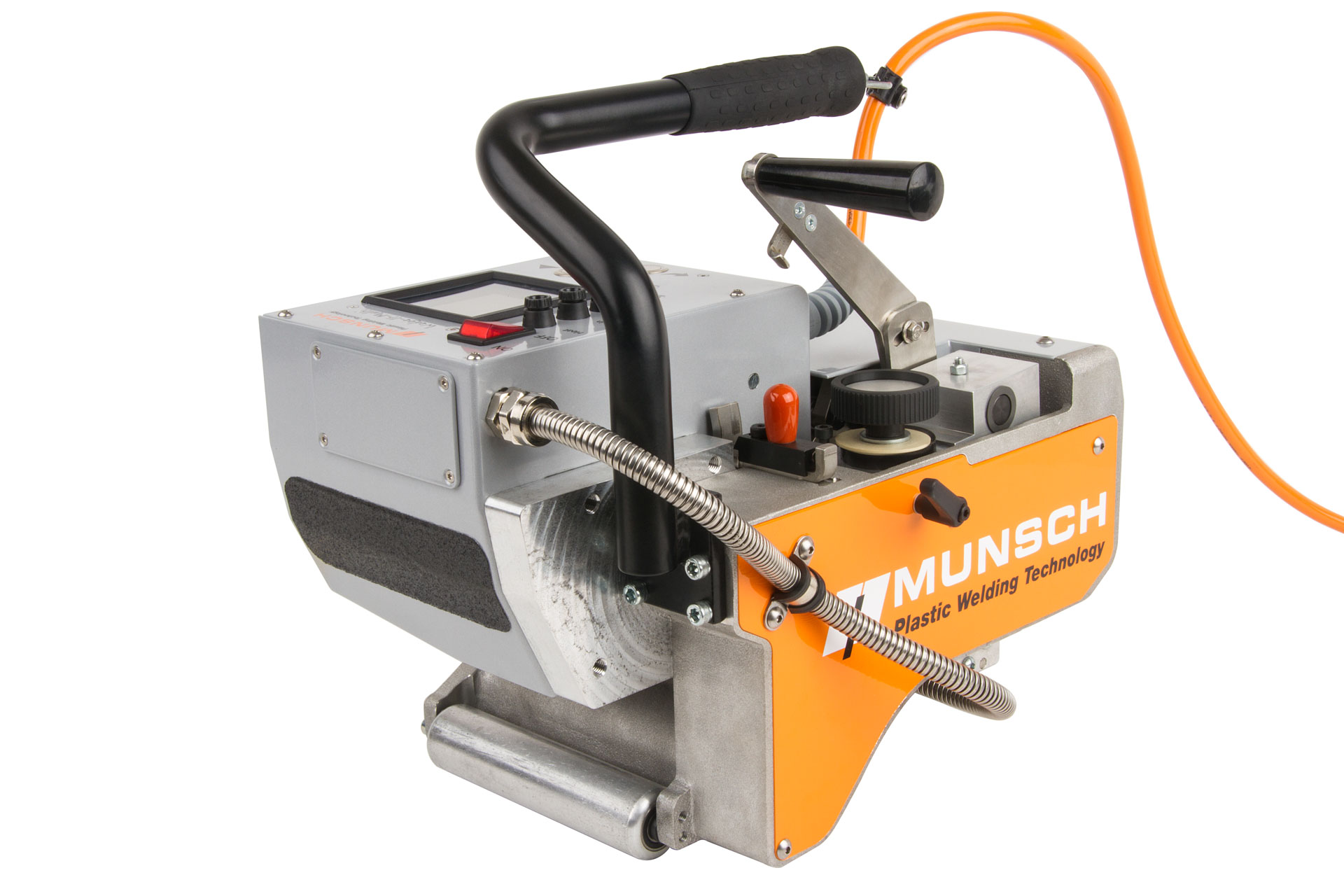

Munsch Wedge IT Multi - Wedge Welder
This “all-rounder” among the automatic film machines can easily process films between 1.0 mm and 3.0 mm. T-joints are also welded without difficulty. It works with a copper heating wedge as standard, but can be converted to stainless steel (for PVC welding) on request. A major advantage of this machine is its data recording.
-
Compact design
-

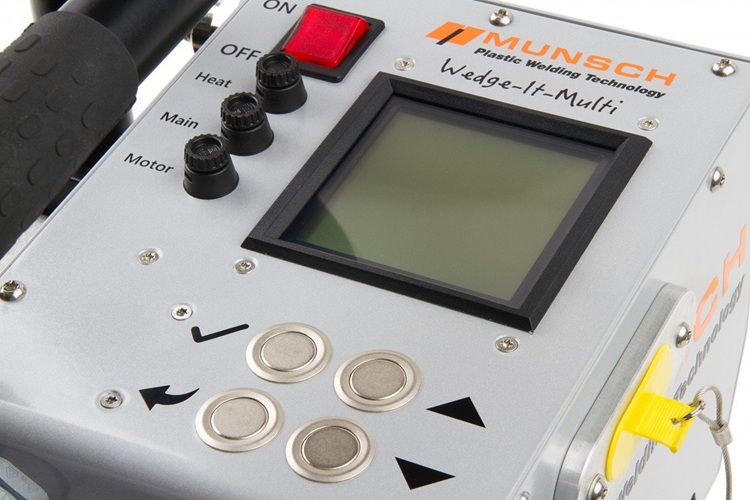

Simple operation via menu
-
All parameters can be set in advance
-
Automatic force adjustment via spring assembly
-
Enormous pulling force thanks to powerful motor
-
Data backup and analysis possible using the SD card and software supplied
-
Transport box included
Technical Specifications:
|
Welding speed (m/min):
|
4.3
|
|
Minimum material thickness: (mm)
|
1
|
|
Maximum material thickness (mm)
|
3
|
|
Material
|
PE-HD, PP, PVC (mit VA-Keil)
|
|
Weight (kg)
|
19
|
|
Length (mm)
|
370
|
|
width
|
270
|
|
height
|
345
|
|
Power (W)
|
1500
|
|
data recording
|
Yes
|
|
Drive type extruder motor
|
Brushless
|
|
Maximum temperature (°C)
|
450
|
|
Heating wedge length (mm)
|
96
|
|
Heating wedge material
|
Stainless steel, Copper
|
|
Width off weld (mm):
|
45
|
|
max. overlap
|
130
|
|
Max. Fügekraft (N)
|
2000
|
|
Display
|
Yes
|
|
Number of pressure rollers
|
6
|
|
Power cord length (m)
|
5
|
|
Approvals
|
CE, UKCA
|
|
Protection class
|
I
|
|
Country of origin
|
Germany
|
|
