Munsch MAX 32-B Extruder Welder 110v

Munsch MAX 32-B Extruder Welder 110v
Munsch MAX 32-B - Plastic Extrusion Welder Munsch MAX 32-B - Removable Filter Munsch MAX 32-B - Display Munsch MAX 32-B - Stand Munsch MAX 32-B - Hook for hoist Munsch MAX 32-B - welding a tank Munsch MAX 32-B - in transport case
Price: £5550.00
Product Code: K07929
Weight 6.00 kgs

Qty

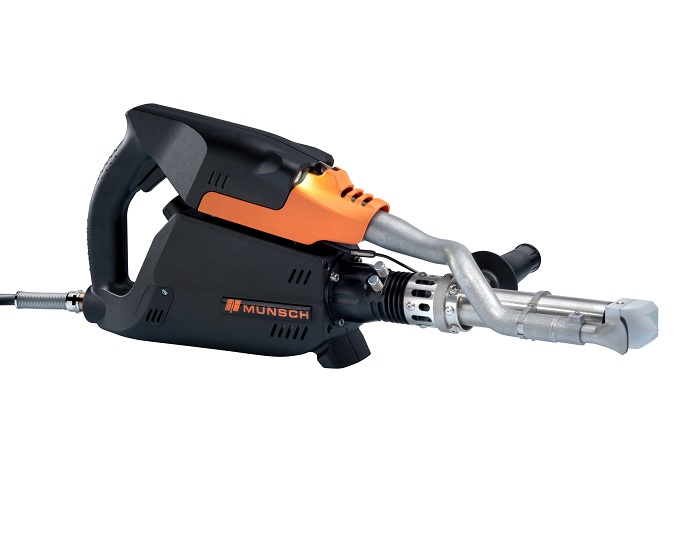

Munsch MAX 32-B Extruder Welder - 110v

The MAK 32-B Plastic Extrusion Welder is the most advanced - compact - lightweight extrusion welder available for plastic welding multiple plastic materials from 4mm up to 15mm.

Used for the fabrication and repair of plastic tanks, vessels, containers, as well as commercial vehicle bodies, portable buildings and logistical containers made from thermoplastic sandwich panels, consisting of polypropylene-honeycomb and fibre-glass reinforced polypropylene-face sheets.

The welder incorporates dual temperature controls for both the air and extrudate - cutting edge extrusion welding technology in a small lightweight easy to handle unit

Extruder welder features:
  • Silent
  • 360° Rotatable Welding Shoe
  • Variable Handle (for when working in tight spaces)
  • High Power LED`s (To illuminate your welding zone)
  • Tool drops into Stand-by Mode (when not in use) – The noise is reduced and also saves 50% in energy
  • When the tool cools down completely the blower automatically turns itself off.
  • Integral air supply
  • Pre-set (adjustable) digital temperature controls for PP/PE/PVDF
  • Safety cut out - prevents cold start of the extruder
  • 12 months warranty
  • CE approved

Extrusion welder technical specification:
  • Voltage: 110v
  • Welds: PP / PE / PVDF
  • Weld Rod Sizes: 3mm Ø & 4mm Ø
  • Welding Output: 1.8 kg Per Hour (3mm Ø)
  • Welding Output: 3.2 kg Per Hour using (4mm Ø)
  • Welding Range: 8mm - 30mm
  • Welder Weight: 7.4 kgs
  • Length: 747 mm
  • Mass Heat Capacity: 800w
  • Pre-heat Capacity: 1600w
  • Frequency: 50/60Hz
  • Requires Power Box: No

Included with the purchase is: -
  • 1 No. Munsch MAX 32-B Extruder Welder - 110v
  • 1 No. 20 mm Fillet Welding Shoe (G08650)
  • 1 No. Unshaped Welding Shoe (G07695)
  • 1 No. Tool Kit (Hexagonal Keys/Adjustable Wrench/Wire Brush)
  • 1 No. User Manual

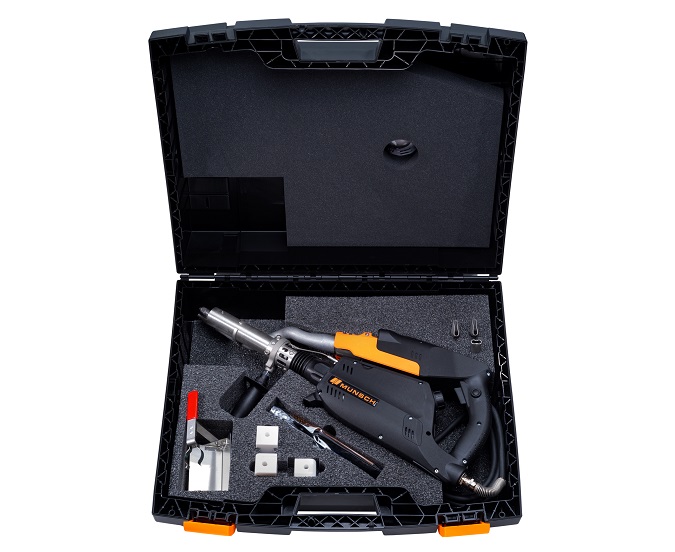

  • 1 No. Transport Case
Also Available in 230v too (see seperate lising).
