230v Oval Q Hot Air Welder - Single Ply Roof Membranes

230v Oval Q Hot Air Welder - Single Ply Roof Membranes
Oval Q - Single Ply Hand Held Roof Welder Roof Welder - In Use 230v Oval Q Roof Welder - Hot Air Torch Tool Gun Oval Q - Single Ply Hot Air Roof Welder Oval Q Controls
Price: £299.00
Product Code: 0155-OV-SPROOF
Weight 1.40 kgs

Add 40mm Wide Slot Nozzle
Add Spare Heating Element
Qty

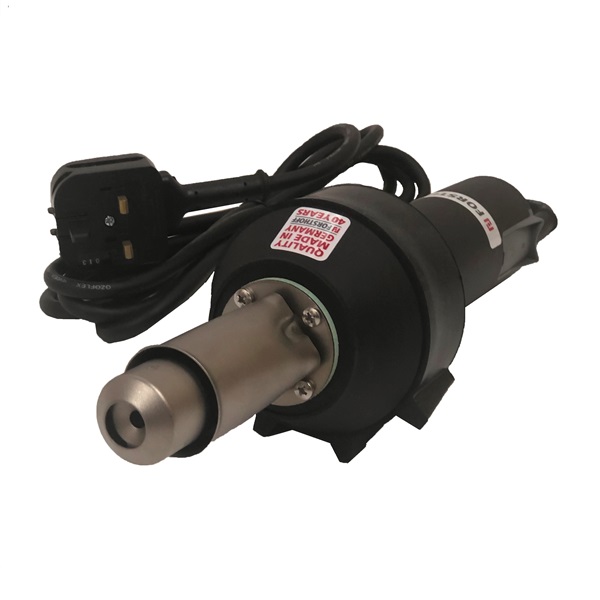

FORSTHOFF 230v Oval Q Hot Air Plastic Welding Gun

For welding & jointing of:-
  • Single Ply Roofing Membranes
  • Bitumen roofing membranes
  • TPO roofing membranes
  • EPDM roofing membranes

For makes of membranes such as: Protan UK, Rubberbond, Carlisle, Flag, Sarnafil, Bauder, Firestone, Alkorplan & Alwitra

New tool - new features:-

  • The new Oval Line`s oval shaped smaller ergonomically shaped grip makes it easier to both handle & work with for long periods. This is ideal for plastic fabricators when undertaking plastic fabrication work.Carbon brushes with safety cut off when worn out  - this prevents damage to the motor
  • Amazingly leightweight at only 1.4 kilos (including mains power cable & plug)
  • Slideon/slide off air filters for easy maintanance of the tool
  • Carbon brushes with safety cut off when worn out  - this prevents damage to the motor
  • The new twin turbine system gives a great air flow of 240 litres per minute
  • Variable electronic temperature control for welding of multiple plastic materials (i.e.: Both Flexible & rigid plastics)
  • Main nozzle with built in heat protection cover
  • On/off switch and temperature dial situated at the underside of the bottom of the tool.
  • 12-month warranty on tool excl. element

Technical Data :

  • Electronic variable temp control ambient - 700 degrees C
  • Voltages: 230v (Fitted with a 240v U.K. Plug)
  • Element Wattage: 1500w
  • Frequency (Hz): 50/60
  • Air output: 240 l/min (Litres per minute)
  • Noise Level: 70 dB
  • (CE) Approved
  • Weight : 1.4 Kilos (inluding manins cable & plug)

Downloads:

The Oval Q hot air plastic welding gun is the industry tool of choice for welding overlaps on single ply roofing membranes

PLEASE NOTE: The 40mm Wide Slot Nozzle IS NOT included with the gun. (Please see related products at the bottom of this page.)

See Related Products below for welding nozzles, pressure rollers & other welding accessories
