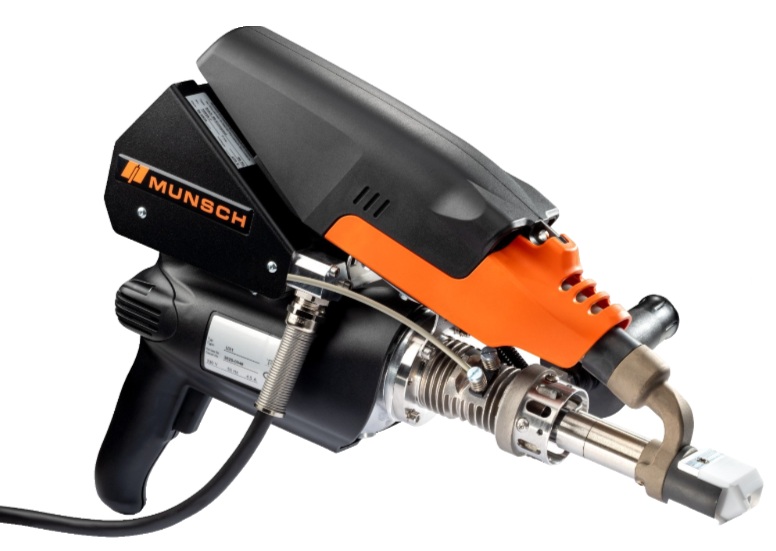

Munsch MAX 18 COMPACT Extruder Welder - 110v

The MAX 18 COMPACT 110v Plastic Extrusion Welder is the shortest extruder in our MAX Range at just 450mm in length.

This makes it ideal for getting into narrow spaces when welding.

This is the most advanced - compact and lightweight extrusion welder available for welding multiple plastic materials from 4mm up to 20mm.

Used for the fabrication and repair of plastic tanks, vessels, containers, as well as commercial vehicle bodies, portable buildings and logistical containers made from thermoplastic sandwich panels, consisting of polypropylene-honeycomb and fibre-glass reinforced polypropylene-face sheets.

Advantages: -

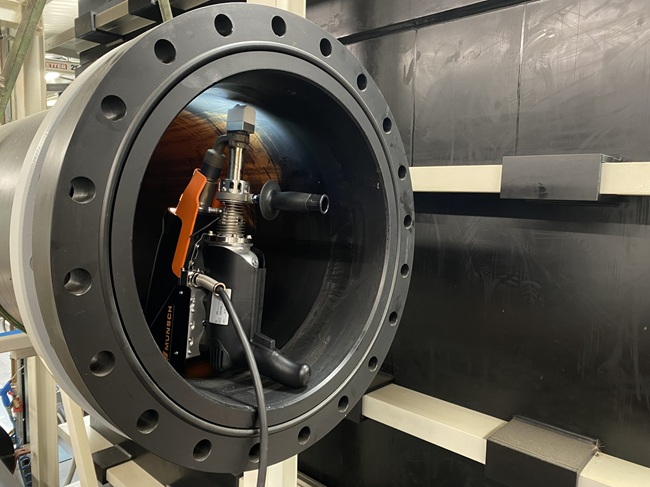

• Compact Design – perfect for working in confined spaces such as: containers, shafts & pipes

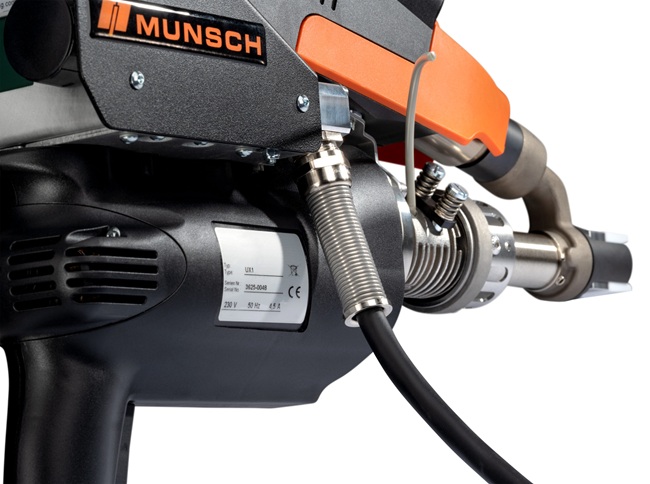

• Side Mounted Mains Cable – space saving, easy to handle
• Fan with Replaceable Filter – durable, low maintenance with dust protection
• Integrated LED Work Light – offering better vision by illuminating your welding seam

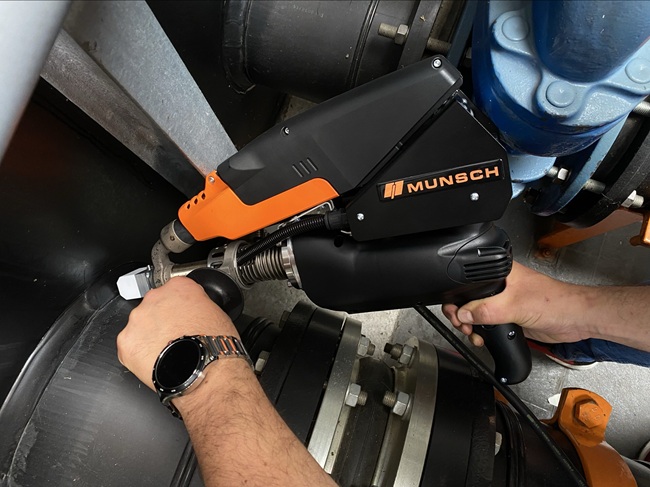

Working in confined spaces then the MAX-18 Compact is the best solution when every centimetre counts.

Extruder welder features:

• Silent
• Lightweight (Only 5.5 Kilos)
• 360° Rotatable Welding Shoe
• Variable Handle (for when working in tight spaces)
• High Power LED`s (To illuminate your welding zone)
• Tool drops into Stand-by Mode (when not in use) – The noise is reduced and also saves 50% in energy
• When the tool cools down completely the blower automatically turns itself off.
• Integral air supply

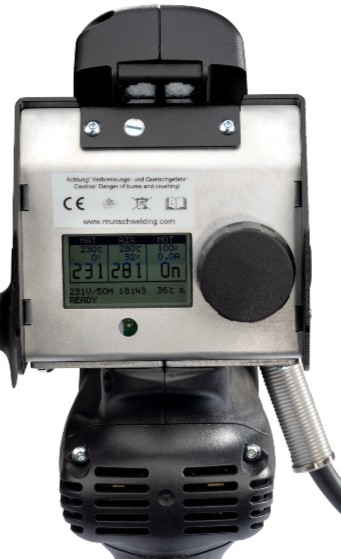

• Pre-set (adjustable) digital temperature controls for PP/PE/PVDF
• Safety cut out - prevents cold start of the extruder
• 12 months warranty
• CE approved

Extrusion welder technical specification:

• Voltage: 110v
• Welds: PP / PE / PVDF
• Weld Rod Sizes: 3mm Ø & 4mm Ø
• Welding Output: 1.3 kg Per Hour (3mm Ø)
• Welding Output: 2.2 kg Per Hour using (4mm Ø)
• Welding Range: 4mm - 20mm
• Welder Weight: 5.5 kgs
• Length: 450 mm
• Mass Heat Capacity: 400w
• Pre-heat Capacity: 1600w
• Frequency: 50/60Hz
• Requires Power Box: No

Included with the purchase is: -

• 1 No. Munsch MAX 18 COMPACT Extruder Welder
• 1 No. 10 mm Fillet Welding Shoe (G07684)
• 1 No. 25mm Film Welding Shoe (G07680)
• 1 No. Unshaped Welding Shoe (G07692)
• 1 No. Tool Kit (Hexagonal Keys/Adjustable Wrench/Wire Brush)
• 1 No. User Manual
• 1 No. Transport Case

Also Available in 230v too (see separate listing).
