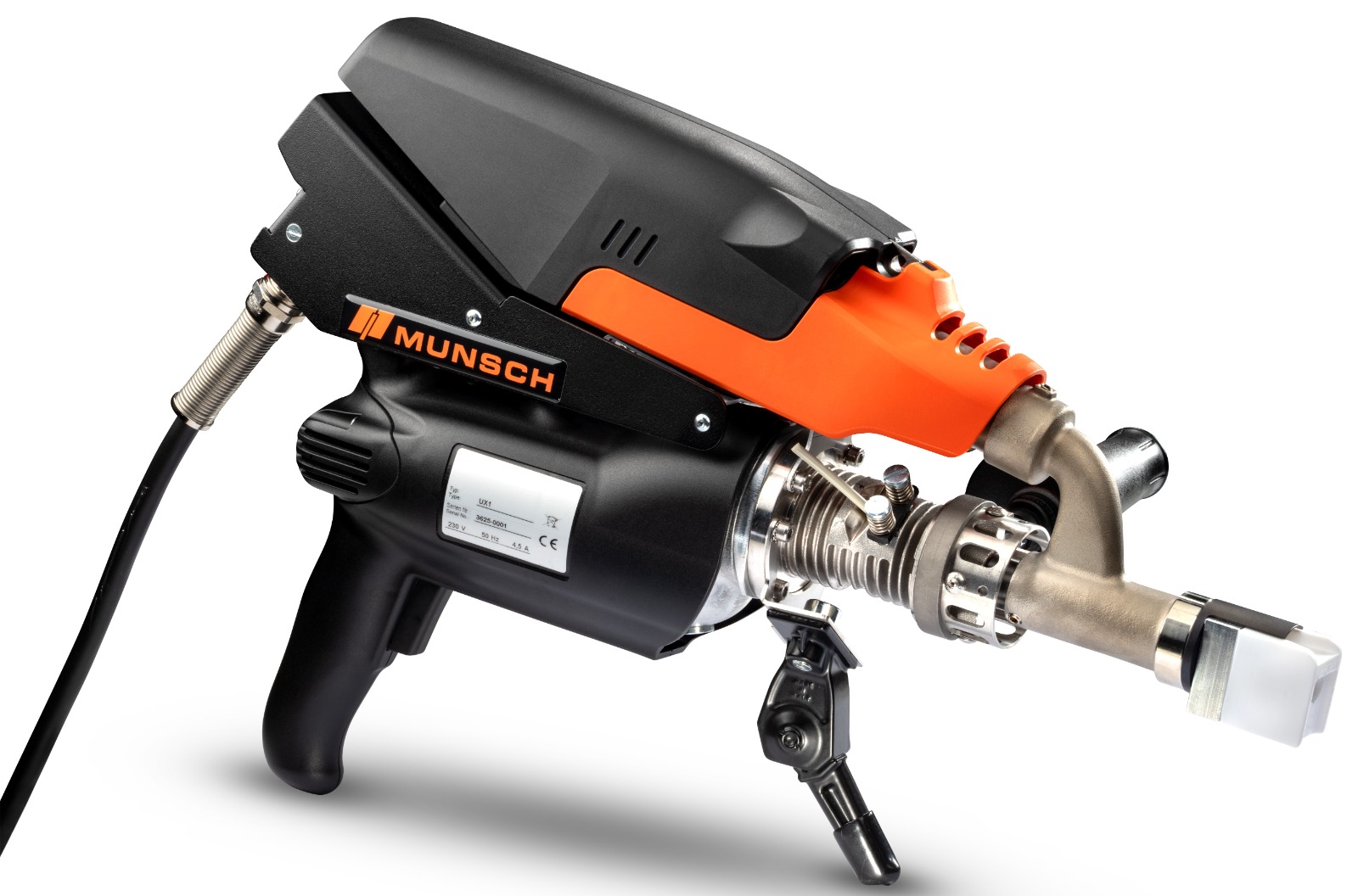

Munsch MAX 18S Extruder Welder 110v

Munsch MAX 18S Extruder Welder 110v

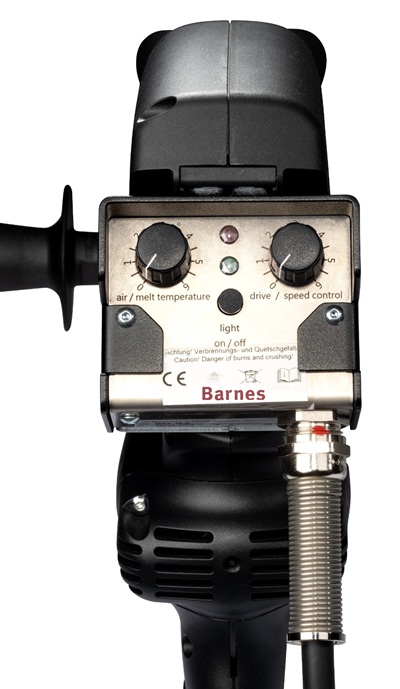

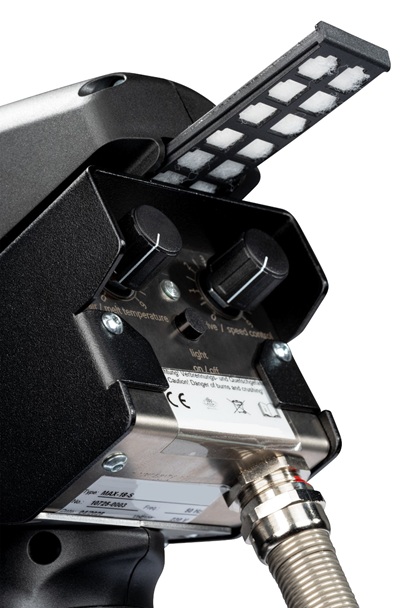

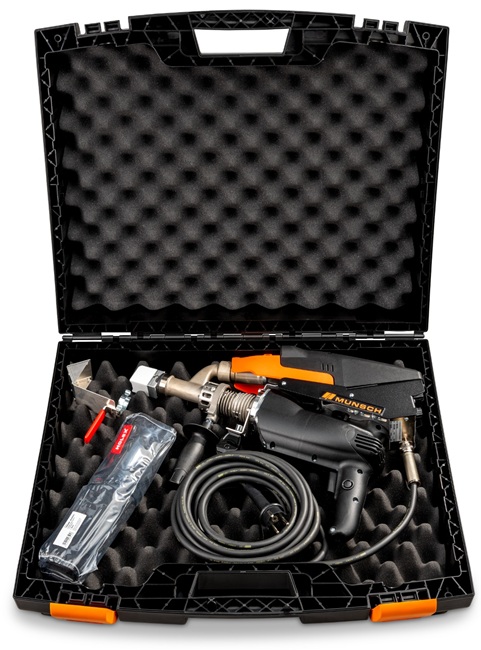

Munsch MAX 18 S 110v Extruder Welder Munsch MAX 18 S 110v Temperature & Speed Controls MAX 18 S 110v Extruder 360 Degree Rotating Shoe Munsch MAX 18 S Removable Filter Munsch MAX 18 S c/w Storage Case & Tools
Price: £3450.00
Product Code: K08067
Weight 6.00 kgs

Qty
Munsch MAX 18 Extruder Welder -110v

The MAX 18S Plastic Extrusion Welder is the most advanced - compact - lightweight extrusion welder available for plastic welding multiple plastic materials from 4mm up to 20mm.

Used for the fabrication and repair of plastic tanks, vessels, containers, as well as commercial vehicle bodies, portable buildings and logistical containers made from thermoplastic sandwich panels, consisting of polypropylene-honeycomb and fibre-glass reinforced polypropylene-face sheets.

The welder incorporates dual control for both temperature and weld speed - cutting edge extrusion welding technology in a small lightweight easy to handle unit.

Extruder welder features:
  • Silent
  • Lightweight: Only 4.8 Kilos
  • 360° Rotatable Welding Shoe
  • Variable Handle (for when working in tight spaces)
  • High Power LED`s (To illuminate your welding zone)
  • Tool drops into Stand-by Mode (when not in use) – The noise is reduced and also saves 50% in energy
  • When the tool cools down completely the blower automatically turns itself off.
  • Brushless blower with standby function and automatic shut-off
  • Integrated dust filter on blower for coarse dust
  • adjustable) digital temperature controls for PP/PE/PVDF
  • Safety cut out - prevents cold start of the extruder
  • Retractable machine stand included
  • 12 months warranty
  • CE approved

Extrusion welder technical specification:
  • Voltage: 110v
  • Welds: PP / PE / PVDF
  • Weld Rod Sizes: 3mm Ø & 4mm Ø
  • Welding Output: 1.4 kg Per Hour (3mm Ø)
  • Welding Output: 2.2 kg Per Hour using (4mm Ø)
  • Welding Range: 4mm - 20mm
  • Welder Weight: 4.8 kgs
  • Length: 510 mm
  • Heat Capacity: 2300w
  • Frequency: 50/60Hz
  • Requires Power Box: No

Included with the purchase is: -
  • 1 No. Munsch MAX 18 Extruder Welder
  • 1 No. 10 mm Fillet Welding Shoe (G07684)
  • 1 No. 25mm Film Welding Shoe (G07680)
  • 1 No. Tool Kit (Hexagonal Keys/Adjustable Wrench/Wire Brush)
  • 1 No. User Manual
  • 1 No. Transport Case
Also Available in 230v too (see seperate listing).
