Internal Pipe Bead Removal Tool - Ø 90 mm to Ø 630 mm

This OMISA Internal Bead Removal Tool is used for removing the the butt fusion welding beads inside PE and PP pipes.

The spacers for the basic guide rod can be continuously adjusted to the respective inside diameter.

The cutting out of the bead is carried out manually and in an ideal case, the bead is removed during the cooling period.

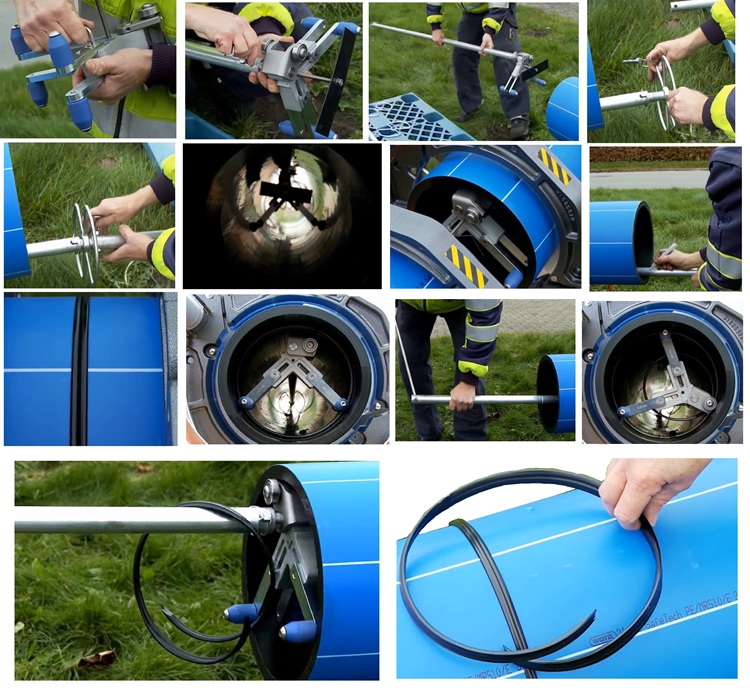

An internal debeader needs to reach up the length of the pipe, sometimes up to 12 meters. To overcomes this, the tool uses a drive handle and a cutter head to reach in and cuts the weld bead from the HDPE or PP pipe.

Inside diameter from 90mm up to 630mm Insertion depth of a maximum of 12 meters.

Geometrically designed to not damage the pipe walls.

Used to eliminate friction and sediment build up in the pipe.

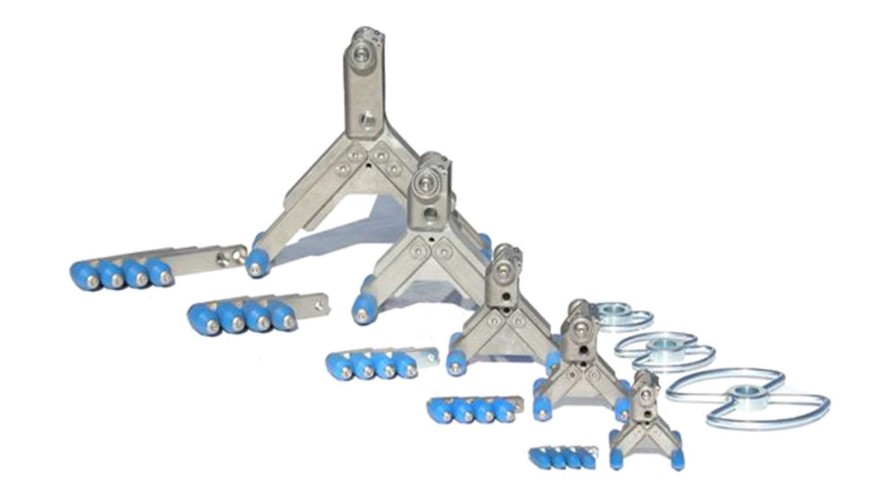

The Kit consists of:-

• 6 No. Extension Rods (Each 2.15 Mtr Long) - One of the Rods is used as the turning handle.
• 5 No. Centring Rings
• Ø 90-110 mm Cutting Head
• Ø 125-160 mm Cutting Head
• Ø 160-200 mm Cutting Head
• Ø 225-315 mm Cutting Head
• Ø 355-500 mm Cutting Head
• Ø 560-630 mm Cutting Head
• Screws to adjust legs, plus a service tool

Pipe Sizes and Pressure Ratings Covered:

• Ø 90-500 mm in SDR 17-26
• Ø 560-630 mm in SDR 11-26.

Non-stock item - Availability 7 to 10 working days.
