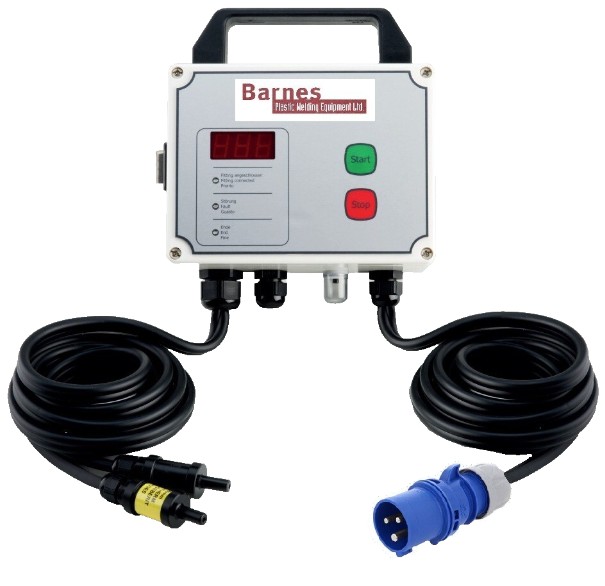

230v Electro-Fusion AquaFuze HST-S-160 Welder

For Jointing of Geberit HDPE Syphonic Rainwater Pipe and Drainage Systems

Electronically controlled unit for welding PE electrofusion couplings

Features:

• Operating range 40 - 160 mm, all fitting makes
• Data input Contact identification
• Welding monitoring system Welding voltage, welding current, short-circuit, ambient temperature, input frequency, input voltage
• Workable fittings Connection A00 - fittings size 16 - 160 mm, brands Geberit, Valsir, Akatherm, Eurofusion, Waviduo, Coes, and Vulcathene-Euro
• Multi-adapter cable (optional), part no. 402-300-002
• Display screen Seven-segment screen
• Input voltage 230 V, 40 - 70 Hz
• Output current max. 5 A
• Output voltage 230 V
• Rated power 1150 W
• Current draw AC 10 A
• Standards, quality, ingress
• protection CE, DVS, RAEE-compliant, ISO 9001:2015, RoHS compliant, IP54
• Temperature range –20°C through +60°C (–4°F through +140°F)
• Power supply cord 3 m with UK 16 Amp 240V pLUG (or EU Shucko Plug - Please ask)
• Welding cable 3 m
• Weight, kg 1.4
• Dimensions (W × H × D),
• mm | inches 165 × 200 × 85 | 6½ × 7⅞ × 3⅜

• • Handheld pipe scraper
• • Storage bag
