Munsch X58-GEO Geomembrane Extruder Welder 230V

Product Code:

K08295

Weight

8.80 kgs

Call for details on +44 (0) 1254 660910

Qty: Out of stock

Ask a question about this product

Product Details
Video

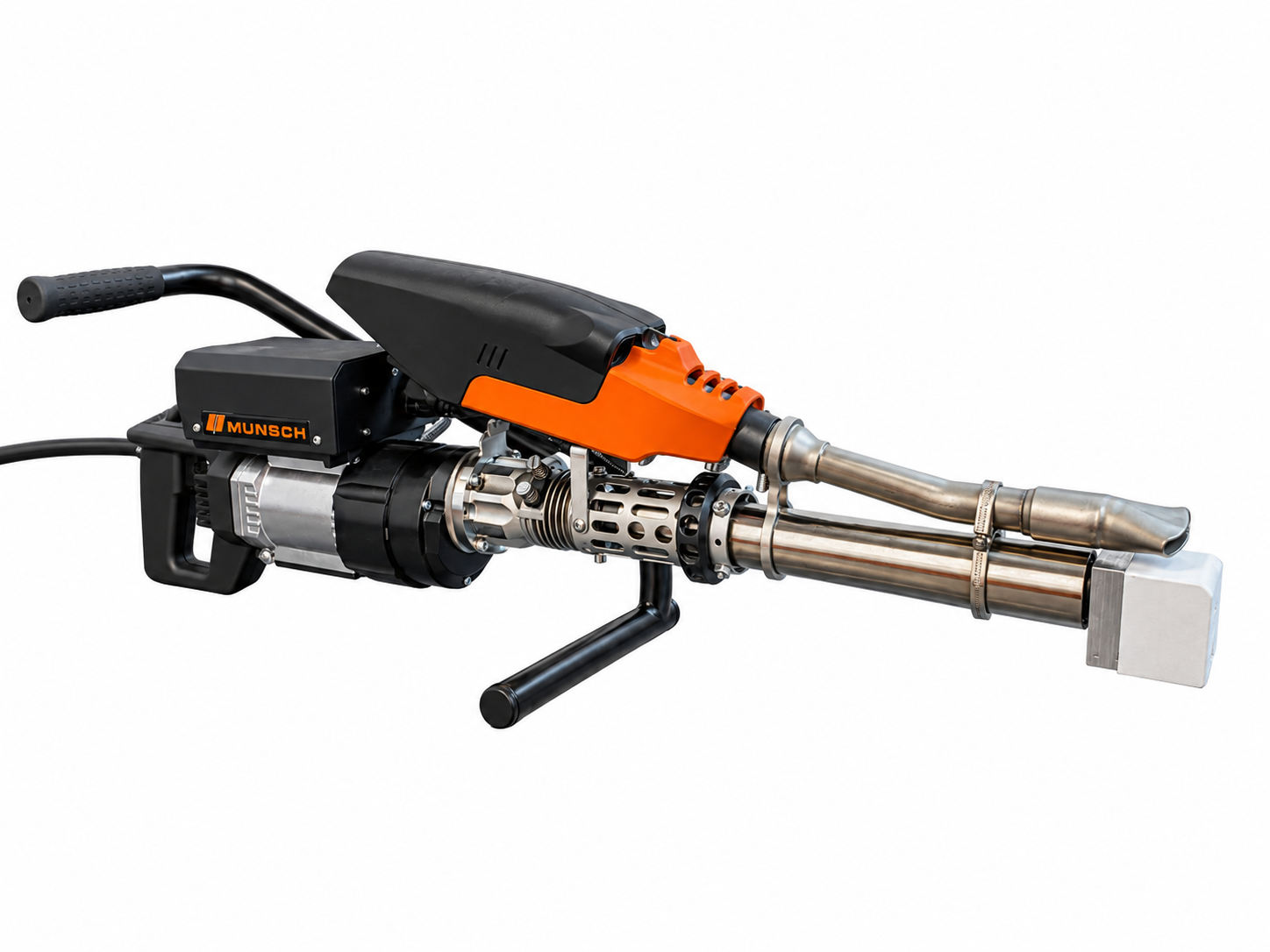

Munsch X58-GEO Geomembrane Extruder Welder 230V

Maximum welding power – when surface area, speed and reliability count.

The MAX-58 is the largest extruder with a brushed motor in the MUNSCH MAX series – and a real favorite in the field of geomembrane welding, sealing technology and large-area plastic constructions.

With an output of up to 5.8 kg/h (with 5 mm wire), the MAX-58 offers maximum welding performance – and all this with a weight-conscious design of just 10.2 kg. This is made possible by a powerful 2000 watt drive in combination with an intermittent control for air and mass heating. This means that the device can be operated at the house connection without compromising on efficiency.

Typical MAX: The MAX-58 comes with all the convenience and quality features of the series – from digital menu navigation and separately adjustable temperatures to integrated high-performance LEDs and a robust appliance stand for greater stability in use.

Up to 5.8 kg/h output (with 5 mm wire) – the most powerful brushed extruder from MUNSCH
For wall thicknesses from 12-40 mm
Optimized for geosynthetics, films and large weld seams
Compact & strong: only 10.2 kg with a length of 700 mm
DVS-compliant temperature control for mass & air separately
Energy-efficient – can also be operated with a house connection
Digital menu navigation & material presets
Integrated LEDs & dust filter – ideal for everyday use on construction sites
Part of the MAX range – proven quality & practical design

Included with the purchase is: -

1 No. Munsch MAX 58D Extruder Welder - 230v
1 No. Film Welding Shoe
1 No. Unshaped Welding Shoe
1 No. Tool Kit (Hexagonal Keys/Adjustable Wrench/Wire Brush)
1 No. User Manual
1 No. Transport Case

HomeNicht kategorisiertX-58-GEO

X-58-GEO

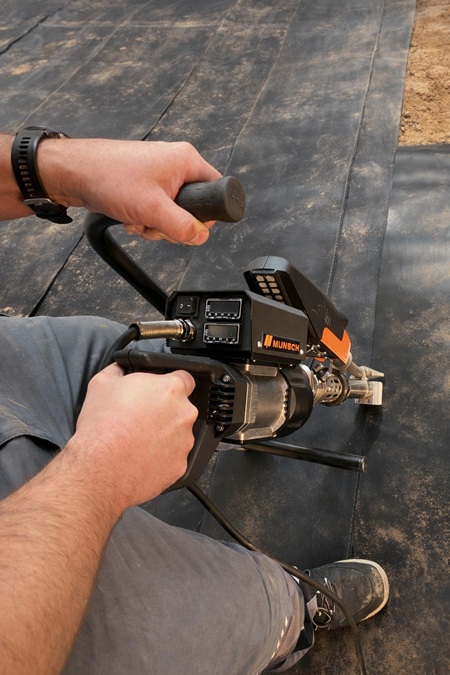

Safe Welding—Even Under the Toughest Conditions

The X-58 Geo was specifically designed for use on construction sites. Maximum power reserves, a robust design, and a consistently maintenance-friendly concept ensure reliable results—even with changing crews and in harsh environments. Instead of complex electronics, the device relies on proven technology that is available worldwide. Downtime is minimized, and servicing remains simple—ensuring that projects are completed on schedule.

Separate adjustment of air and mass temperatures for DVS-compliant operations

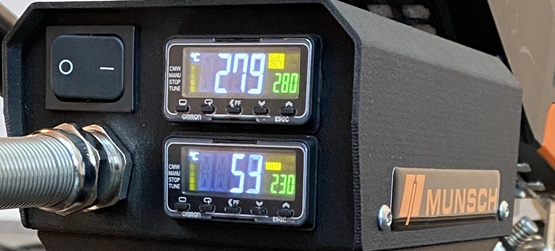

Tried-and-true Omron controllers—available worldwide, field-replaceable

All core components can be replaced quickly and easily on site

Maintenance-friendly design for quick service and minimal downtime

Flexible blower concept—also compatible with blowers from other brands already on site

High-performance MUNSCH blower with built-in dust filter

Consistent material feed for consistent weld quality—even over long weld lengths

Robust drive system optimized for continuous operation
