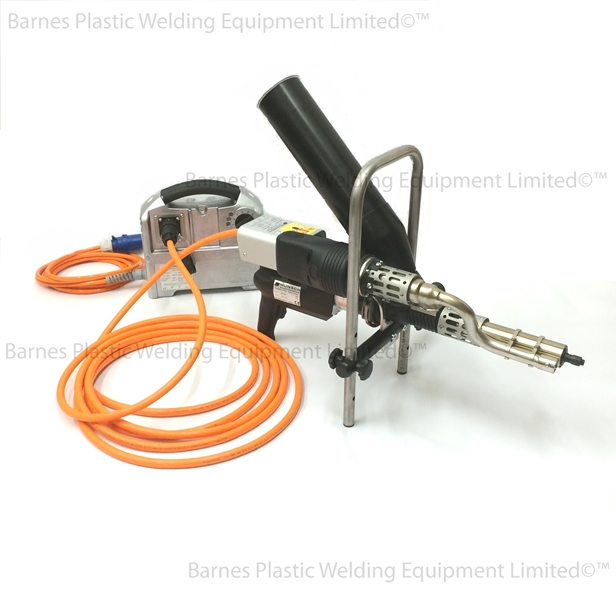

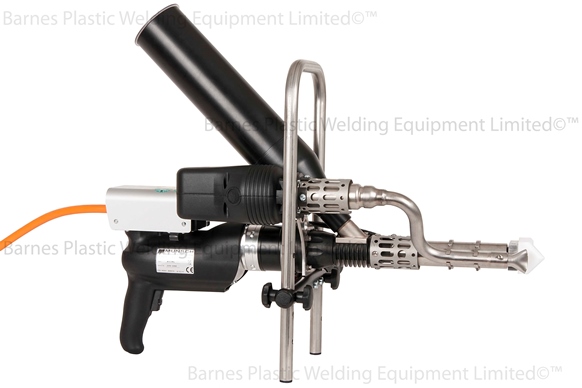

Munsch GMAK 350 B Granular Feed Extruder Welder 230v

Plastic Extrusion Welder for Plastic Tank Fabrication and Repair

Introducing the latest in extruder welder technology - for plastic welding repairs and welding of plastic tanks / containers etc

Extruder welder features :

• Integral air supply
• Pre- set dual digital temperature controls
• Safety cut out - prevents cold start of the extruder

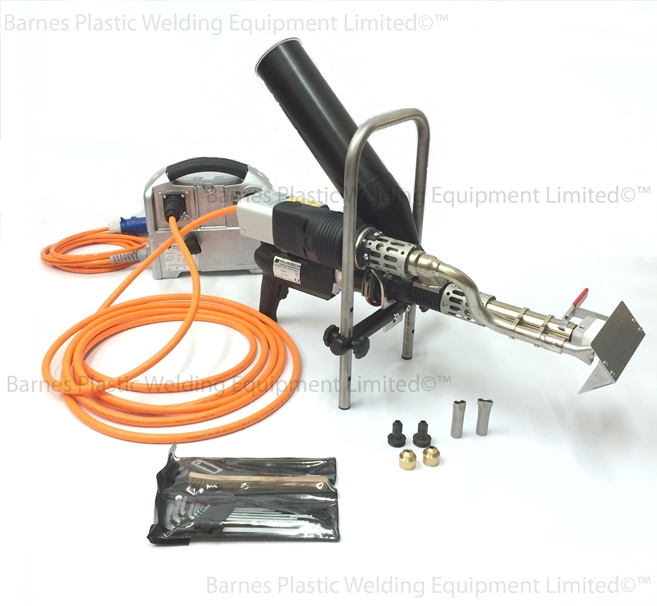

• Complete with a choice of 1 No. extruder weld shoe + air nozzles
• Operating Manual
• Set of hexagonal keys
• 12 months warranty
• CE approved

Extrusion welder technical specification :

• 230v
• Extrusion welding output : 4 kg / hour *
• Welding material : PP / PE
• Granular Feed: via re-fillable hopper
• Extrusion welding range : 10 mm - 40 mm
• Weight : 10.5 kgs
• Length : 57 cm
• Heating Capacity : 2300w
• Heater Cartridge (for Extrudate) Capacity: 650w

* Depending on type and size of the granulate

The advanced - compact - granular feed extrusion welder available for plastic welding multiple plastic materials from 10 mm up to 40 mm

The GMAK 350 B extrusion welder incorporates dual temperature controls for both the air and extrudate - cutting edge extruder welder technology with a high extrusion output

Please call or email for more information to :

• Request a demo of this plastic extrusion welder
• Purchasing

Please Note: Requires separate power box (see related products)
