Model KSM 225 - Plastic Sheet Butt Welder - 2.5 Metre (1.5mm to 10mm)

Product Code:

Model KSM 225

Weight

300.00 kgs

Call for details on +44 (0) 1254 660910

Qty: Out of stock

Ask a question about this product

Product Details

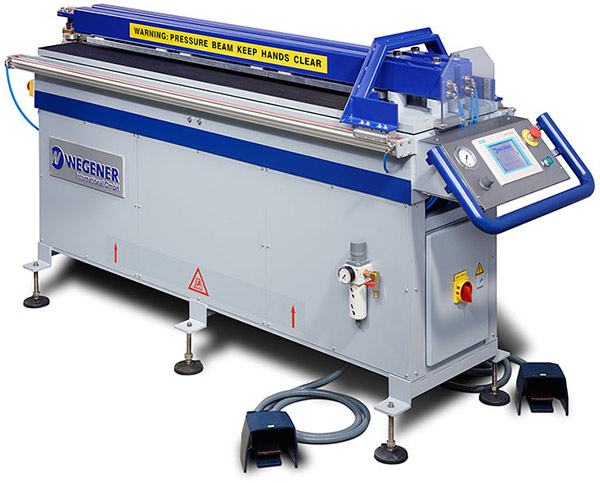

Wegener Model KSM 225 - Plastic Sheet Butt Welder - 2.25 Metre (1.5mm to 10mm)

`The Special` for thin sheets - for sheet thickness 1.5 up to 10 mm

Features:

Lightweight design machine base as a steel structure with integrated precision working tables in a sandwich design that are adapted to the loads
Mechanical synchronisation of the working tables
Highly dynamic machine movements through smooth running properties of the drive system

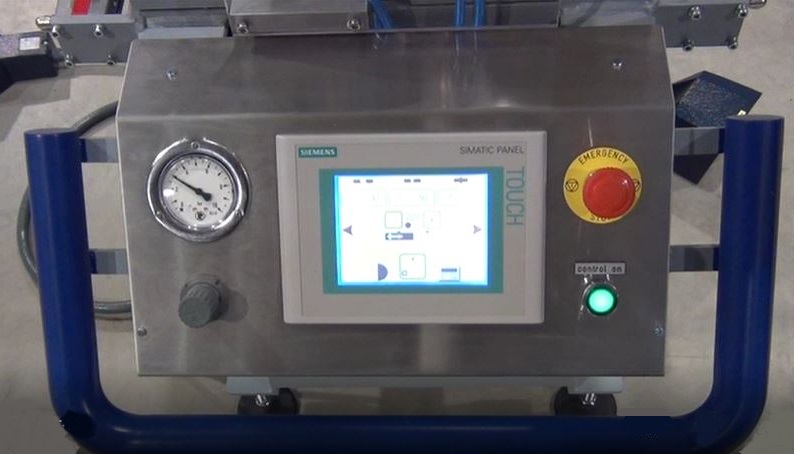

Siemens S7 control system with 5.7" full graphics touch screen
Precise control of the heating sword temperature
Heating sword release with cleaning position above the clamping beam
Anti-twist clamping disks
Ejection device for welded material incl. cutter to remove the weld bead
Special welding lengths are possible

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment

systems, scrubbers, environmental technology, swimming pools, transport and logistics

Technical Data	Model KSM 225
Machine Length (mm):	3,200
Machine Width (mm):	700
Machine Height (mm):	1,000
Total Weight (kg):	850
Max. working width (mm):	2,250

Weldable Sheet Thickness
PE [0.15 N/mm²]:	1.5 to 6
PP [0.10 N/mm²]:	1.5 to 10
PVDF [0.10 N/mm²]:	1.5 to 10

Min. channel cross section inside *dimension (W x H in mm):**	200 x 200

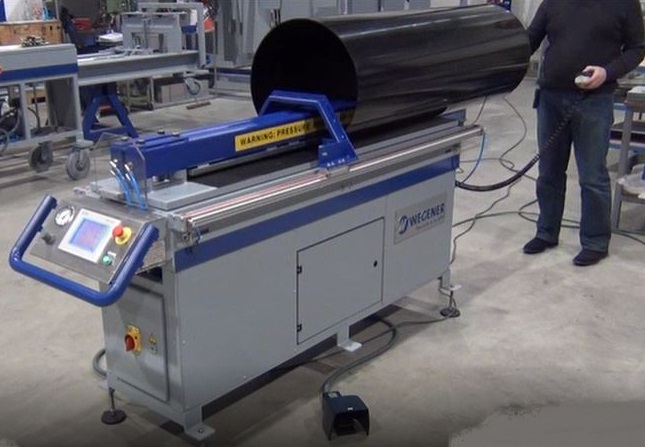

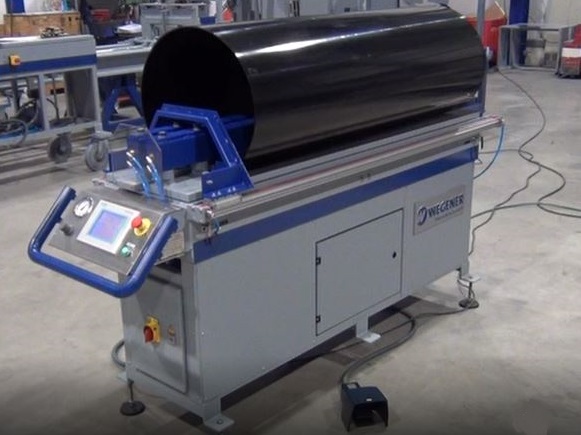

*Min. cylinder cross section diameter (mm):**	225
Power Supply Standard:	230V 1/N/PE 50/60 Hz
Power consumption standard (kW):	3
Compressed air connection (bar):	8 - 10
Clamping force (at 8 bar in kN):	7.7
Clamping force (at 10 bar in kN):	9.6
Welding Force
Min. Table force (N):	350
Max. Table force (at 8 bar in kN):	2.4
Max. Table force (at 10 bar in kN):
Heating element Teflon coated Tmax= 260 °C (B x H in mm):	15 x 40
