Homepage Industrial Process Heat - Hot Air Tools-Blowers Forsthoff Heating Elements - Type 5000

Forsthoff Heating Elements - Type 5000

Forsthoff Heating Elements - Type 5000
Click to enlarge

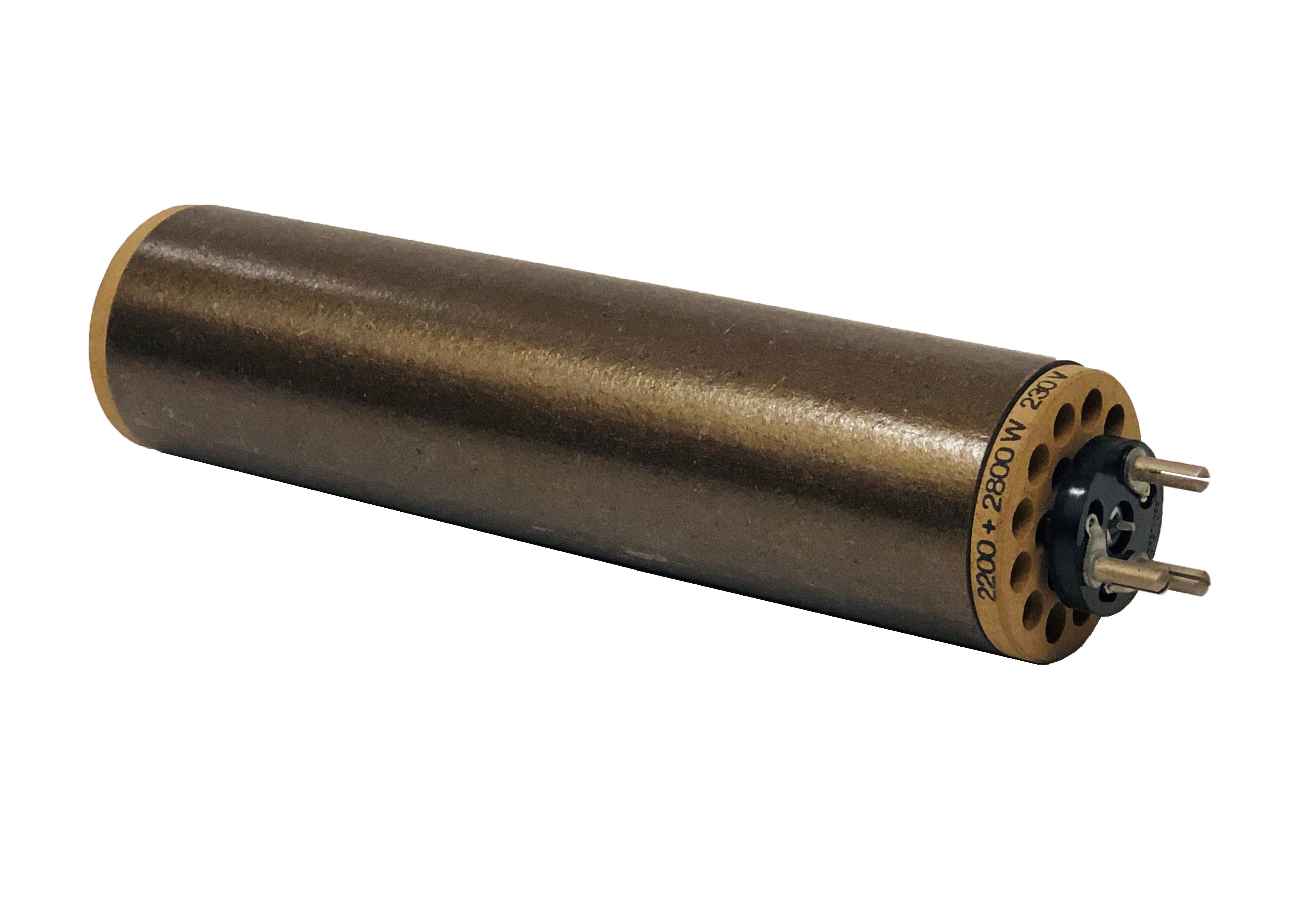

3108: 230v 2200/2800w Forsthoff Heating Element (Type 5000 Tool)
Price: £101.00
Product Code: 3108
Weight 0.50 kgs

Voltage/Wattage
Qty
  • Ask a question about this product
FORSTHOFF - Heating Elements for Type 5000 Hot Air Tools

For use with the FORSTHOFF Type 5000 Hot Air Tools/Industrial Heat Sources

These ceramic element have an inbuilt outer insulation sleeve or mica sleeve and can be used as spare elements or replacement elements for the Type 5000 Tools

  • Code No. 3108: 230v 2200/2800w
  • Code No. 3109: 230v 3 x 1000w
  • Code No. 3110: 400v 3 x 1000w
  • Code No. 3111: 230v 3 x 1700w
  • Code No. 3112: 400v 3 x 1700w
  • Code No. 3114: 230v 3 x 2000w
  • Code No. 3115: 400v 3 x 2000w
  • Code No. 3116: 230v 3 x 2500w
  • Code No. 3117: 400v 3 x 2500w
The FORSTHOFF heating elements are easy to replace - the 3 pronged element plugs and unplugs into the main housing of your plastic welding gun

To relpace the element:
  • Loosen 4 screws on main nozzle of welding gun
  • Remove main nozzle
  • Unplug heating element without twisting
  • Reverse the procedure to fit the new element
