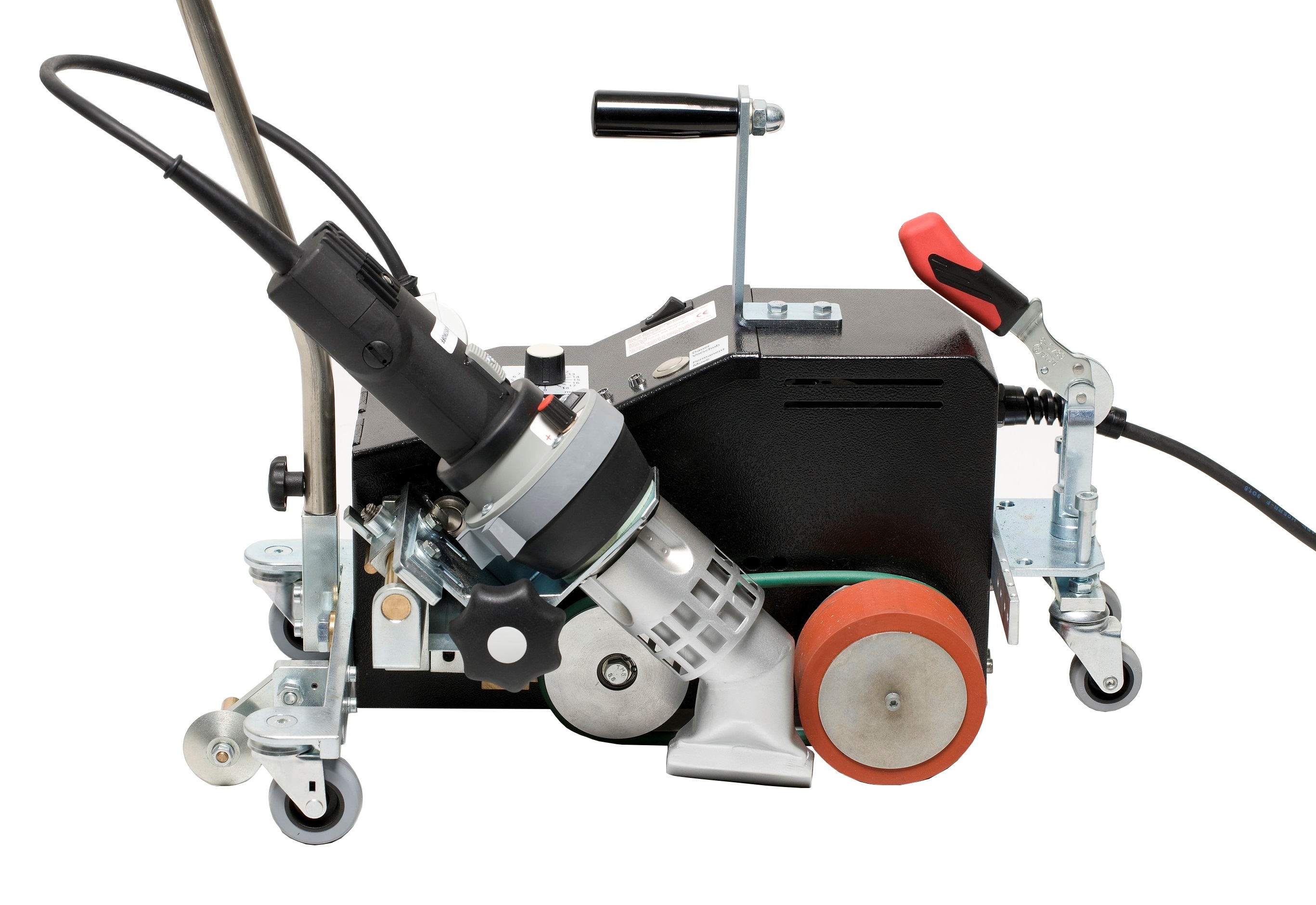

FORSTHOFF P2 110v Trailer Side Curtain & Marquees Hot Air Welding Machine

FORSTHOFF P2 110v Trailer Side Curtain & Marquees Hot Air Welding Machine
FORSTHOFF P2 110v/120v Trailer Side Curtain & Marquees Hot Air Welding Machine Forsthoff P2 Overlap Weld Side Curtain Forsthoff P2 - PVC Mesh Sheet Weld FORSTHOFF P2 - PVC Welding Machine Plus Extra Weights Various Size Overlap Hot Air Welding Nozzles - Forsthoff P2
Price: £2599.00
Product Code: 1108P2
Weight 25.00 kgs

Nozzle Size
Qty
FORSTHOFF P2 - 110v Automatic PVC Plastic Welding Machine

For high speed hot air PVC welding during the manufacture of :
  • PVC Banners
  • Tarpaulins
  • Lorry Trailer Curtains
  • Marquees

Technical Specification:

  •     Voltage: 110v/120v
  •     Frequencey:50/60 Hz
  •     Overlap weld: 45mm
  •     Heating capacity: 2200w
  •     Electronic temperature control : 20 - 700 degrees
  •     Adjustable speed control :  0 - 19m per min
  •     3 point pressure surface contact ensures even pressure distribution over  material
  •     Weight: 17.5 Kg c/w 7 metre mains cable
  •     Dimensions: 535mm x 280mm x 350mm (without Guide Handle)
Point for point quality:
  • Neutral gear facility for machine adjustments
  • Engaging the welding head starts the machine automatically - this process is reversed when welding head is disengaged

The automatic plastic welding machine is easily convertable to facilitate for :
  • 50mm tapes and webbings (See Related Products)
  • Kedar profile welding for marquees (See Related Products)

For high speed precision welded edges on tarpaulins, banners, marquees and for the manufacture of side curtains for commercial vehicles

A quicker more cost effective and flexible alternative to standard high frequency welding.

Overlap Welding with the Forplast P or P2 - PDF https://bit.ly/3JkjnTP

Click on our demo video to watch the hot air PVC welding machine in operation

Availability: Normally, ex-stock our U.K. Works. However, if we are temporarily out of stock delivery time may be up to 3 weeks.

File Name File Type File Size
Pictorial Instructions for Forsthoff P P2 and D - Alignment Set Up PDF 676.738 Kb
