Drader Weld Tip 3/8" or 9-12mm Fillet

Price: £130.00

Product Code: ITIP-2F8

Weight 0.50 kgs

Qty

Ask a question about this product

Product Details
Video

Drader 3/8" or 9-12mm Fillet Weld Tip

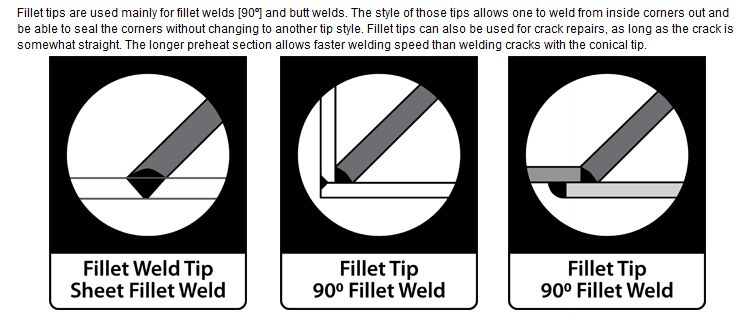

Fillet tips are used mainly for fillet welds [90º] and butt welds. The style of those tips allows one to weld from inside corners out and be able to seal the corners without changing to another tip style. Fillet tips can also be used for crack repairs, as long as the crack is somewhat straight. The longer preheat section allows faster welding speed than welding cracks with the conical tip.

Application Fillet and Buttwelds, Repairs and Prototyping

Geometry 90° (Width of the angled area =3/16" / 3,2 mm)

Max. weld width approx. 43 mm

Length of the tip approx. 13 mm

Manufacturer Item No. ITIP-2F8

Manufacturer ID 3/8” Fillet Tip
