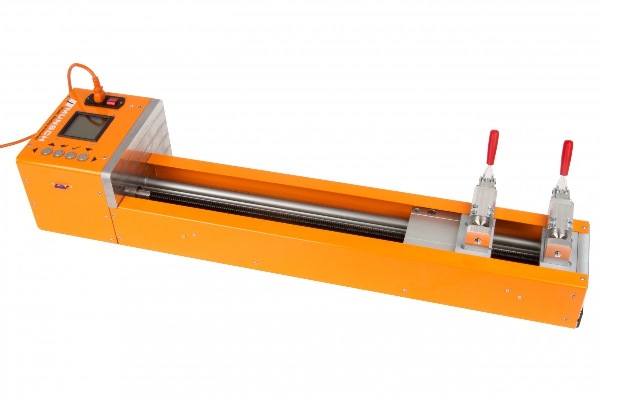

Accura-Dat Tensiometer - Tensile Tester Geomembrane
Accura-Dat Tensiometer - 230v Tensile Tester Geomembrane
On-site weld tensiometer seam/peel tester to ensure welds are up to the required strength and standard.
Tests elongation, peak force & tear forces over 500 mm.
The hot air welded, extrusion welded or wedge welded geomembrane sheet is tested to pull apart by using this device.
Key Points:-
-
Lubrication-free and easy to maintain (Will require an annual calibration)
-
Menu guide is easy to navigate
-
Backwards and forwards bed travel as controlled via the switch
-
Compact and transportable
-
Easy to use menua guide
-
Automatic Start/Stop of the measurement
-
Can be used within the carrying case with ease
Technical Data:-
-
Maximum sample thickness: 8mm
-
Testable Materials: All thermoplastics
-
Menu Guide: Multilingual
-
Maximum Force: 4200 N
-
Test Distance: 500 mm
-
Weight: 38 kg
-
Dimensions: 110 x 32 x 25 cm
The Accura-Dat Tensiometer comes complete with the following:-
-

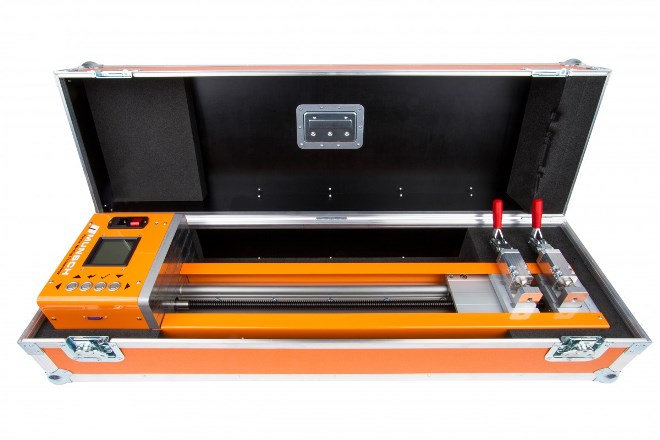

1 Transport case
-
SD flash memory (for data backup)
-
USB flash memory with evaluation software (Microsoft Office Excel 2003 or higher necessary)
|
