3mm PVDF Plastic Welding Rod

Price: £75.00

Product Code: WR.PVDF.3.NT.0.5

Weight 0.50 kgs



Coil Weight

Qty

Ask a question about this product

Product Details

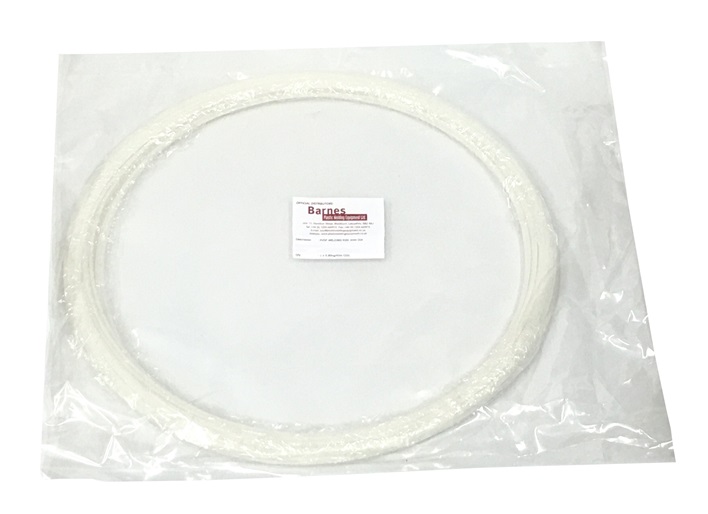

PVDF (Polyvinylidene Fluoride) Plastic Welding Rod

The PVDF (Polyvinylidene Fluoride) Plastic Welding Rod is offered here in 3 mm diameter (as shown in the table below.) This fluoropolymer welding rods are mainly used in the fabrication of chemical baths, wet benches, chemical tanks and vessels (for aggresive chemicals), bespoke inert liquid enclosures and semiconductor wafer baskets.

Rod Diameter	Rod Material	Weight	Length
3mm	P.V.D.F.	500 g (1/2 Kilo)	1/2 Kilo = 40 Metres
3 mm	P.V.D.F.	1 Kilo	1 Kilo = 80 Metres

Welding Rods supplied in 1 mtr sticks or continuous lengths

Recommended Temperatures for Hot Gas Welding:-

Material	Hot Air (Gas) Welding Gun Nozzle Temperature in ºC	Welding Medium
PVDF	360 - 400ºC	Air *

* Oxidisation of the matching material & welding occurs when air is used as the welding medium.

• Important Note: The temperatures shown above are not the heat gun settings. They are the required temperatures that must come out of the heat gun nozzle in order to achieve a sucessful weld.

Please Note: The data provided falls within the normal range of product properties. However, they should not be used to establish specification limits nor used alone as the basis of design. Barnes Plastic Welding Equipment Limited assumes no responsibility for any advice provided by it or for results obtained with respect to these products. All such advice is provided free and the buyer assumes sole responsibility for the results obtained in reliance thereon.

Stock: The above mentioned welding rods are non stock items - Normal delivery: Approximately 3/5 working days from receipt of order.

Please see: Related Products for a comprehensive range of fluropolymer welding rod materials such as:-
