AL250 Aligner - Pipe Alignment Clamps 75 - 250mm

AL250 Aligner - Pipe Alignment Clamps 75 - 250mm
Click to enlarge
AL250 - 90mm-250mm PE PP Pipe Alignment Clamp AL250T 90-250mm PE Tee Piece Alignment Clamp 90mm-250mm PE E-F Pipe Alignment Clamp Set Up
Product Code: AL250 Aligner
Weight 26.00 kgs

Call for details on +44 (0) 1254 660910
  • Ask a question about this product

AL250 Aligner - Pipe Alignment Clamps 75mm - 250mm

Robust, rigid and powerful clamp available in two options and with the option of additional accessories.

Designed and developed to keep thermoplastic pipes (such as HDPE & PP) fixed in one position prior and during the electrofusion welding process by using electrofusion couplings.

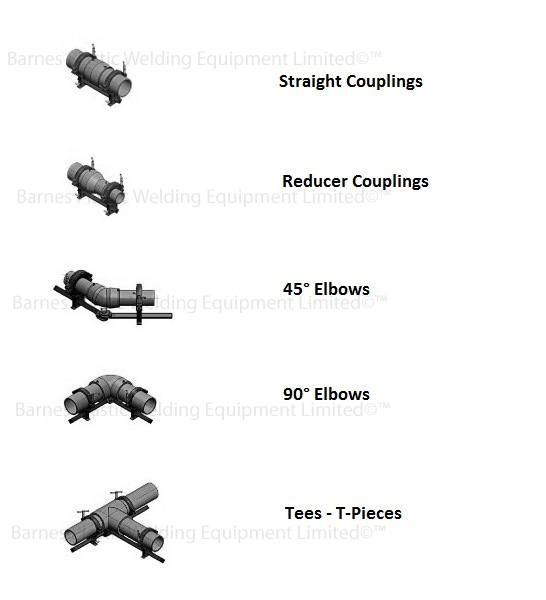

The standard equipment for both straight couplings and elbow couplings, is composed of 4 No. 250mm main clamps connected to 2 main frames/bases.

The additional tee joint equipment is composed of 1 No. the standard device (AL250) with 2 No. additional main clamps connected on 1 No. additional frame/base.

The reducer inserts for the 250mm main clamps are sold in sets of 2 No. (1 No. Upper Insert & 1 No. Lower Insert) and come in sizes: 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm 200mm & 225mm.

Please Note: 1 Set of Reducer Inserts is required per clamp

Code No. Description                                                    Weight Kilos
AL250 250mm Straight Alignment Clamp c/w: 4 x 250mm Main Clamps 26
AL250T 250mm T-Joint Clamp bolts onto the AL250 Clamp (shown above) 5
250P.75 1 Set (of 2) 250mm/75mm Reducer Inserts for AL250 Clamps 5
250P.90 1 Set (of 2) 250mm/90mm Reducer Inserts for AL250 Clamps 5
250P.110 1 Set (of 2) 250mm/110mm Reducer Inserts for AL250 Clamps 5
250P.125 1 Set (of 2) 250mm/125mm Reducer Inserts for AL250 Clamps 5
250P.140 1 Set (of 2) 250mm/140mm Reducer Inserts for AL250 Clamps 5
250P.160 1 Set (of 2) 250mm/160mm Reducer Inserts for AL250 Clamps 5
250P.180 1 Set (of 2) 250mm/180mm Reducer Inserts for AL250 Clamps 5
250P.200 1 Set (of 2) 250mm/200mm Reducer Inserts for AL250 Clamps 5
250P.225 1 Set (of 2) 250mm/225mm Reducer Inserts for AL250 Clamps 5


File Name File Type File Size
AL160 & AL250 Operating Instructions - PDF PDF 2578.359 Kb
